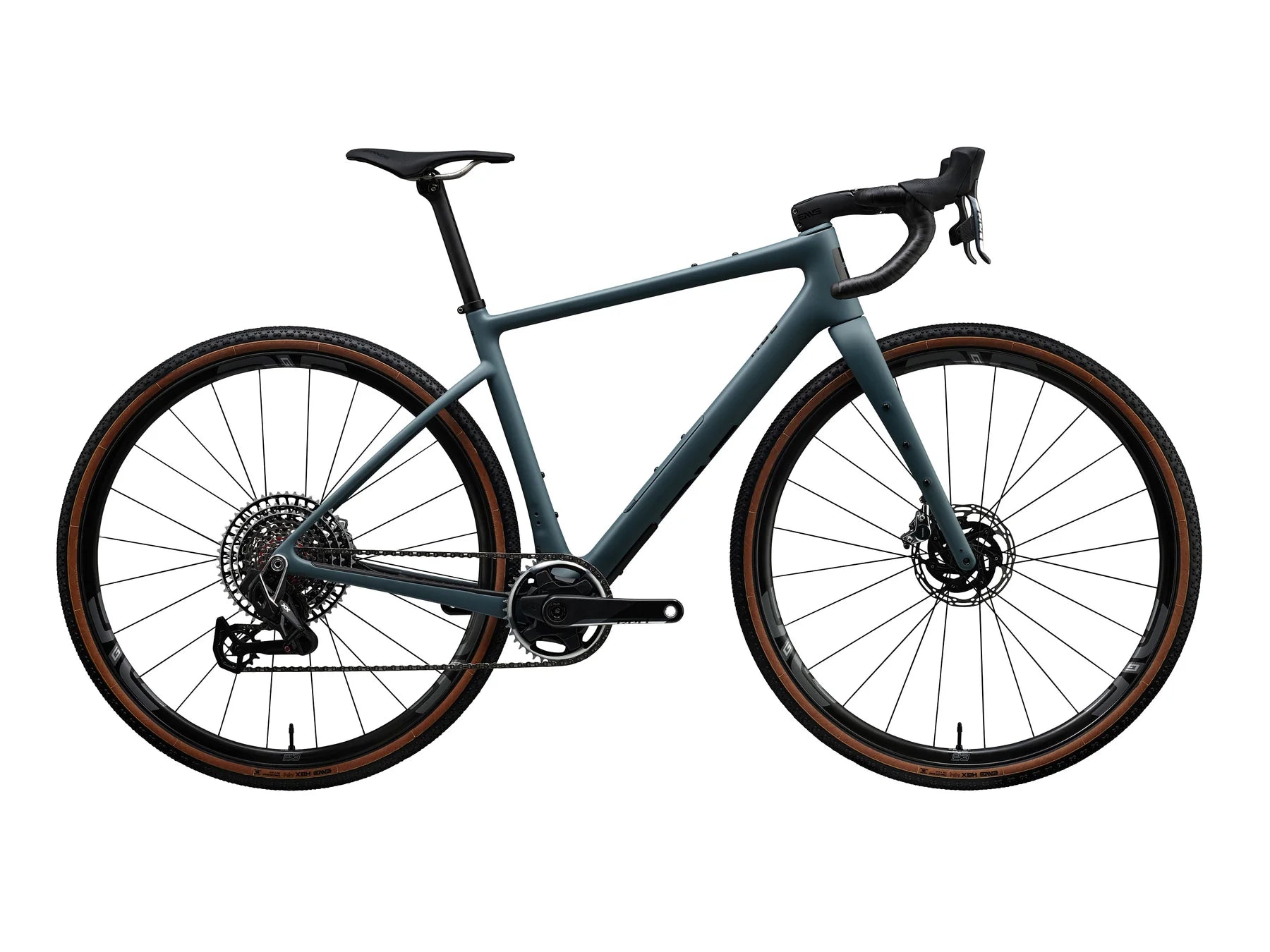

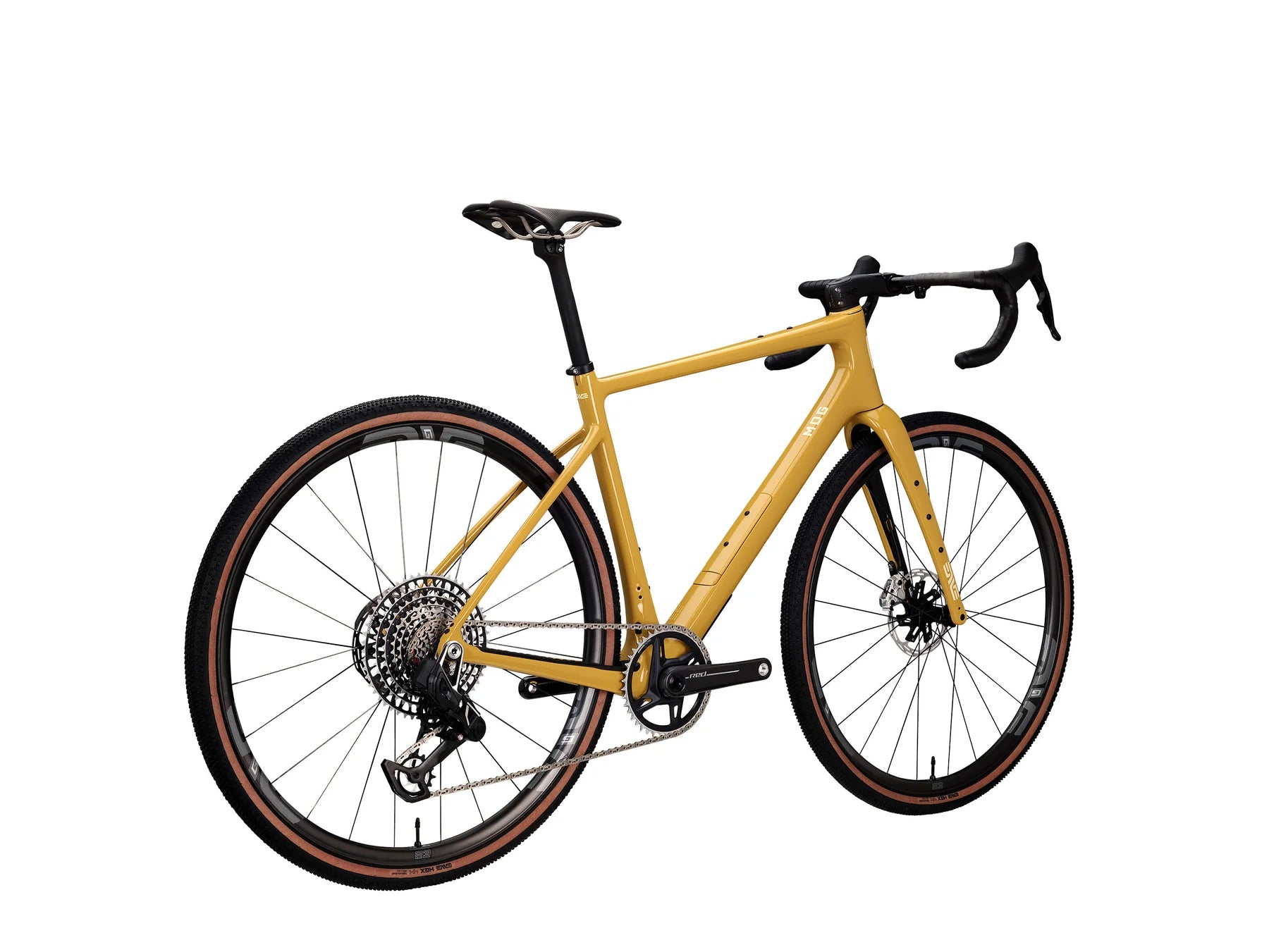

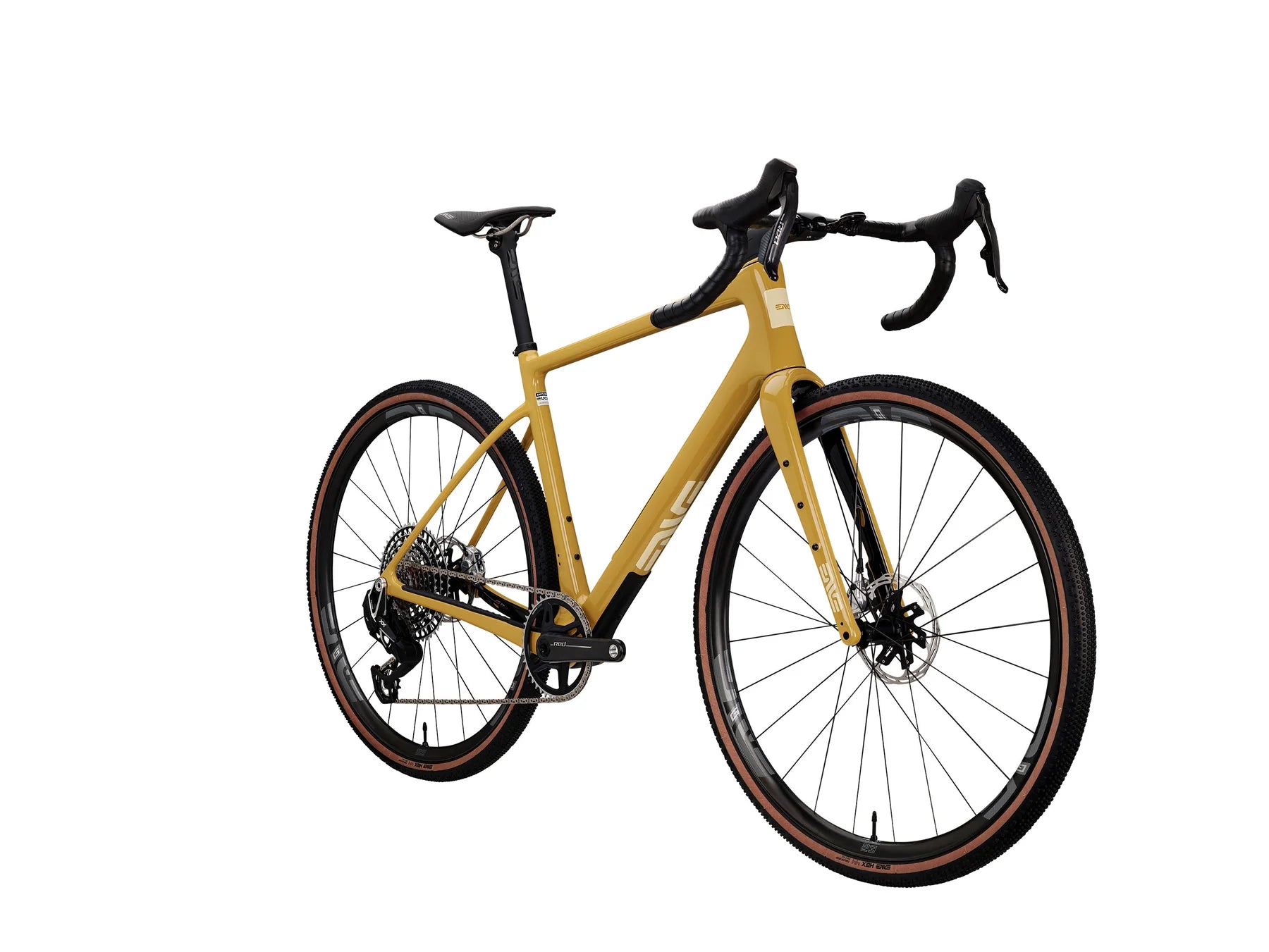

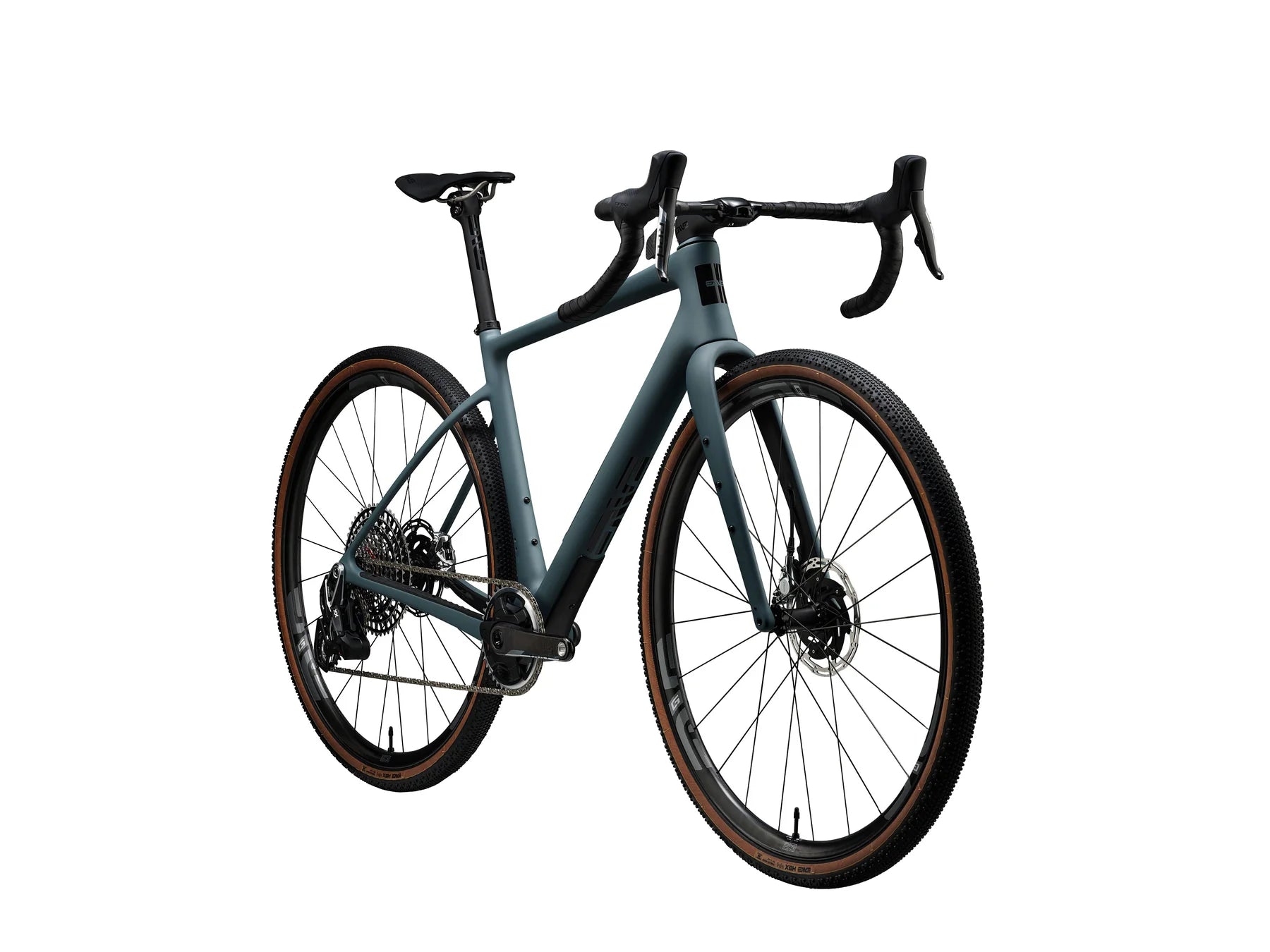

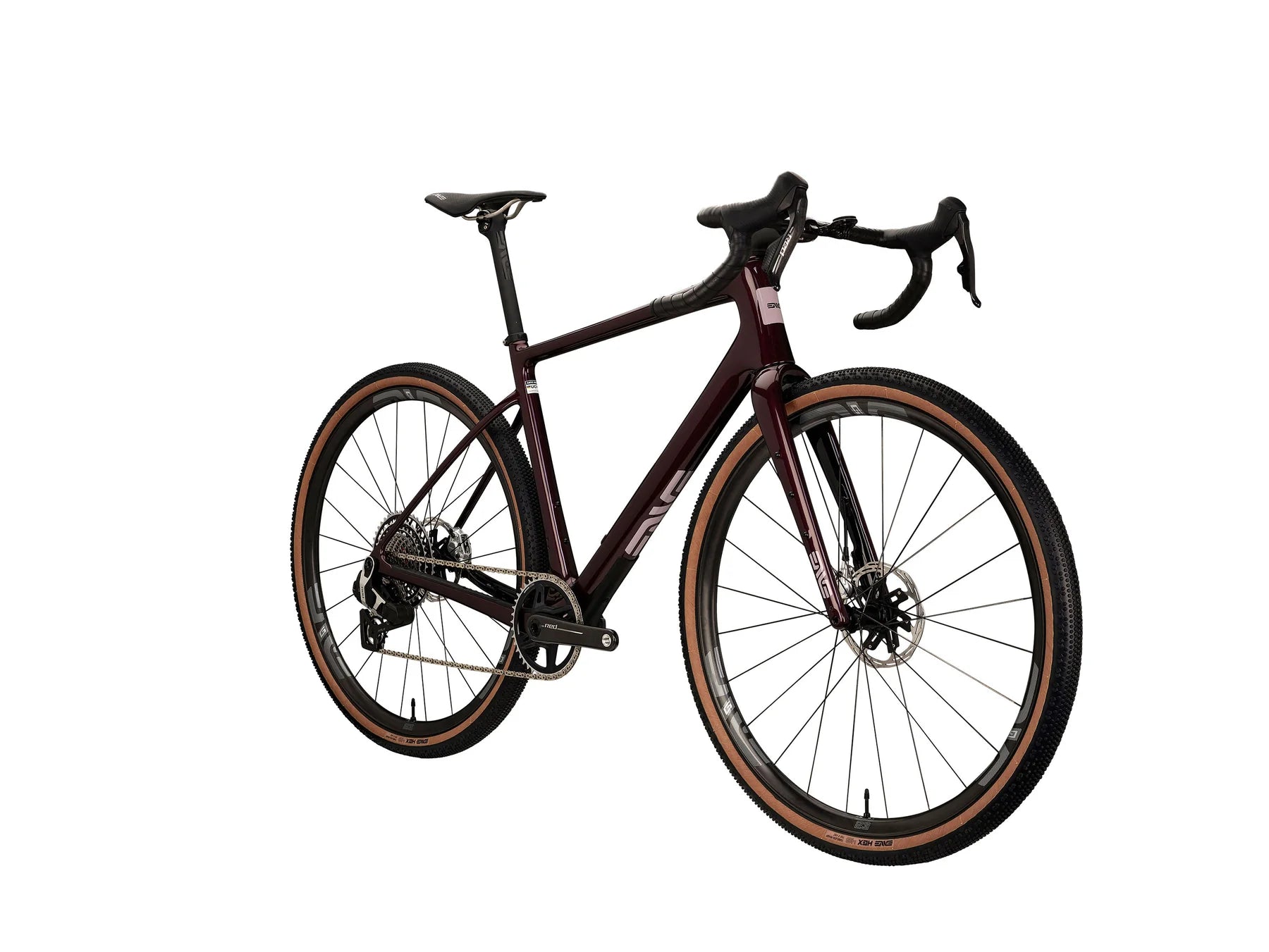

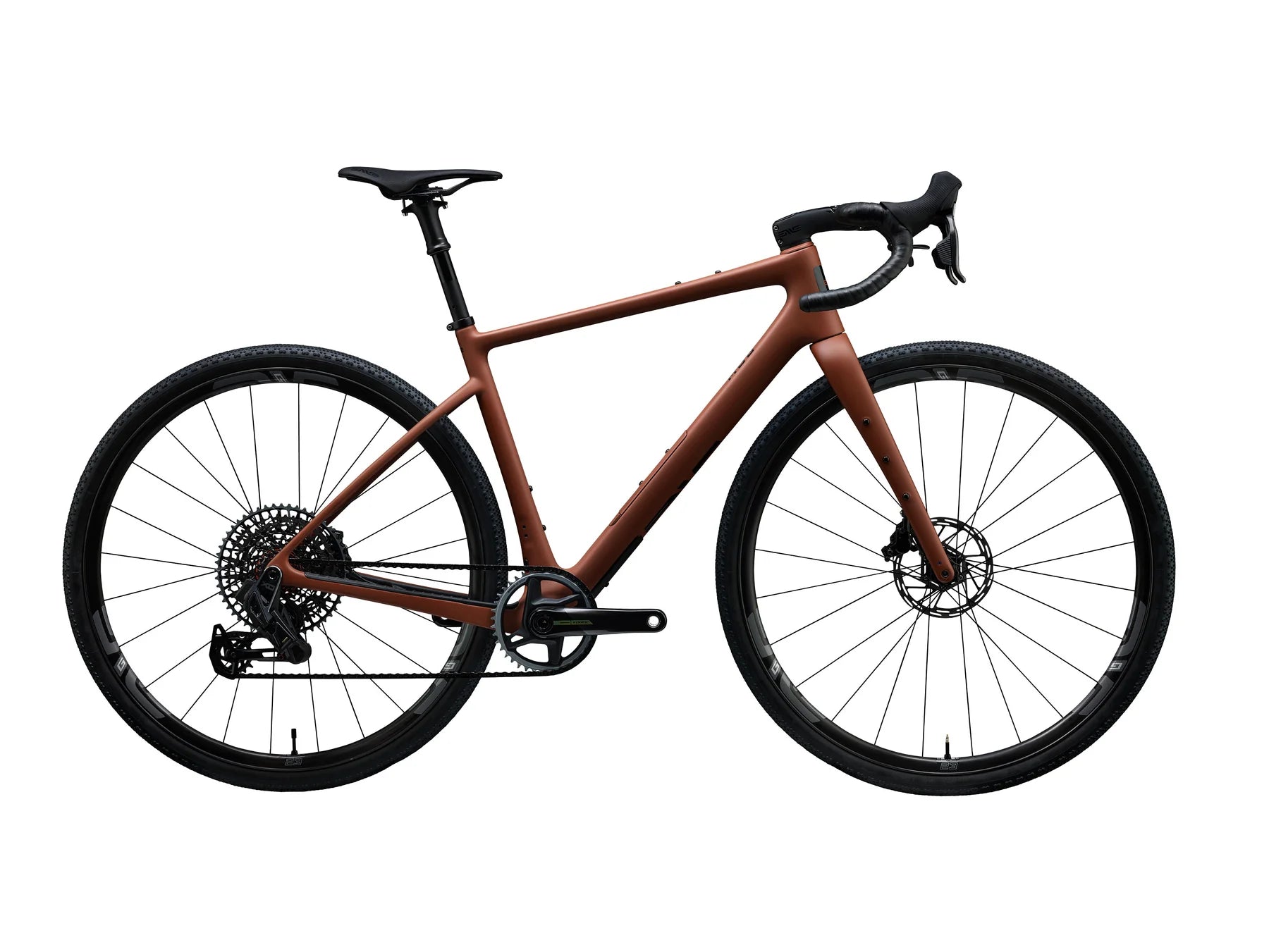

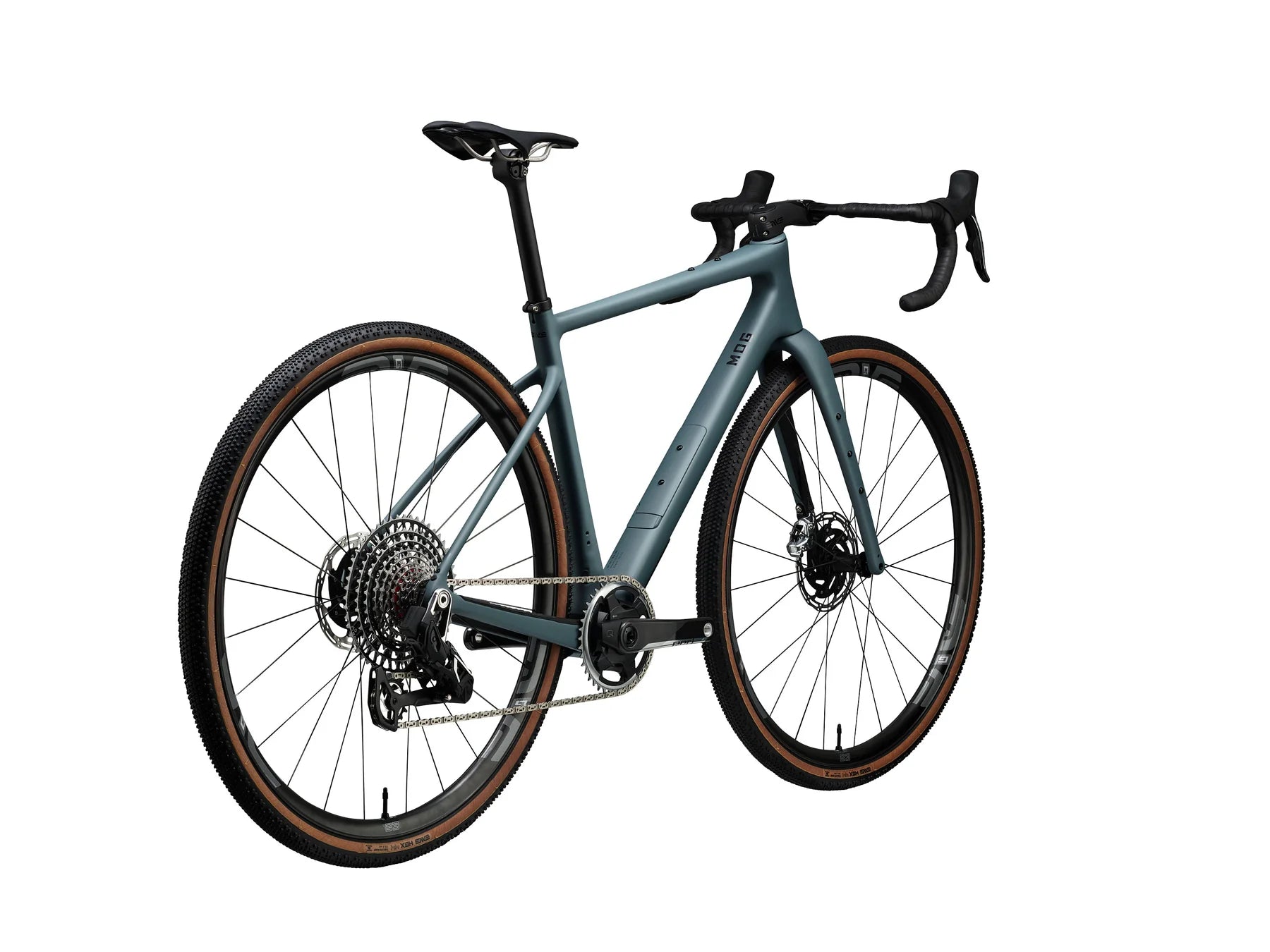

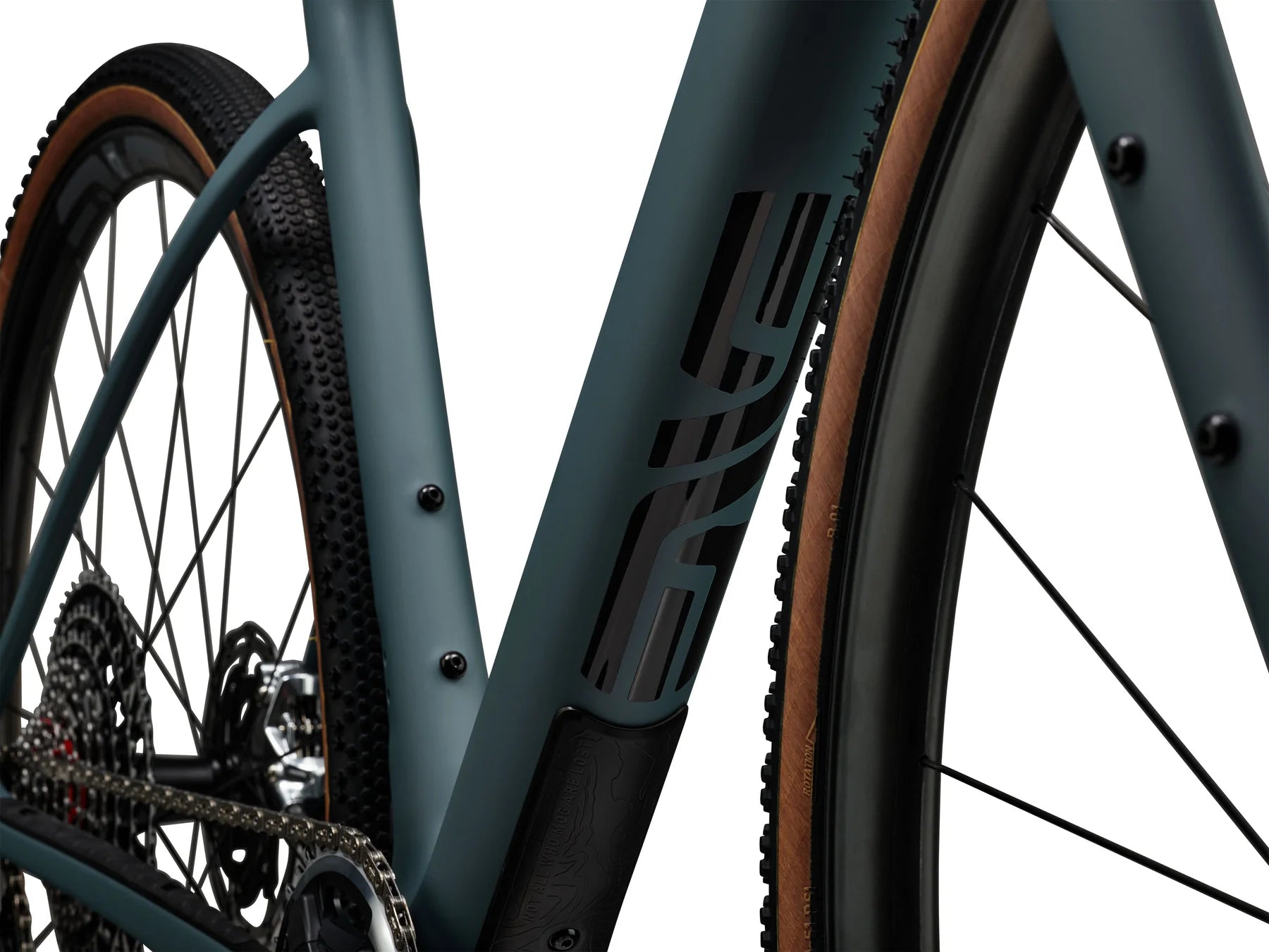

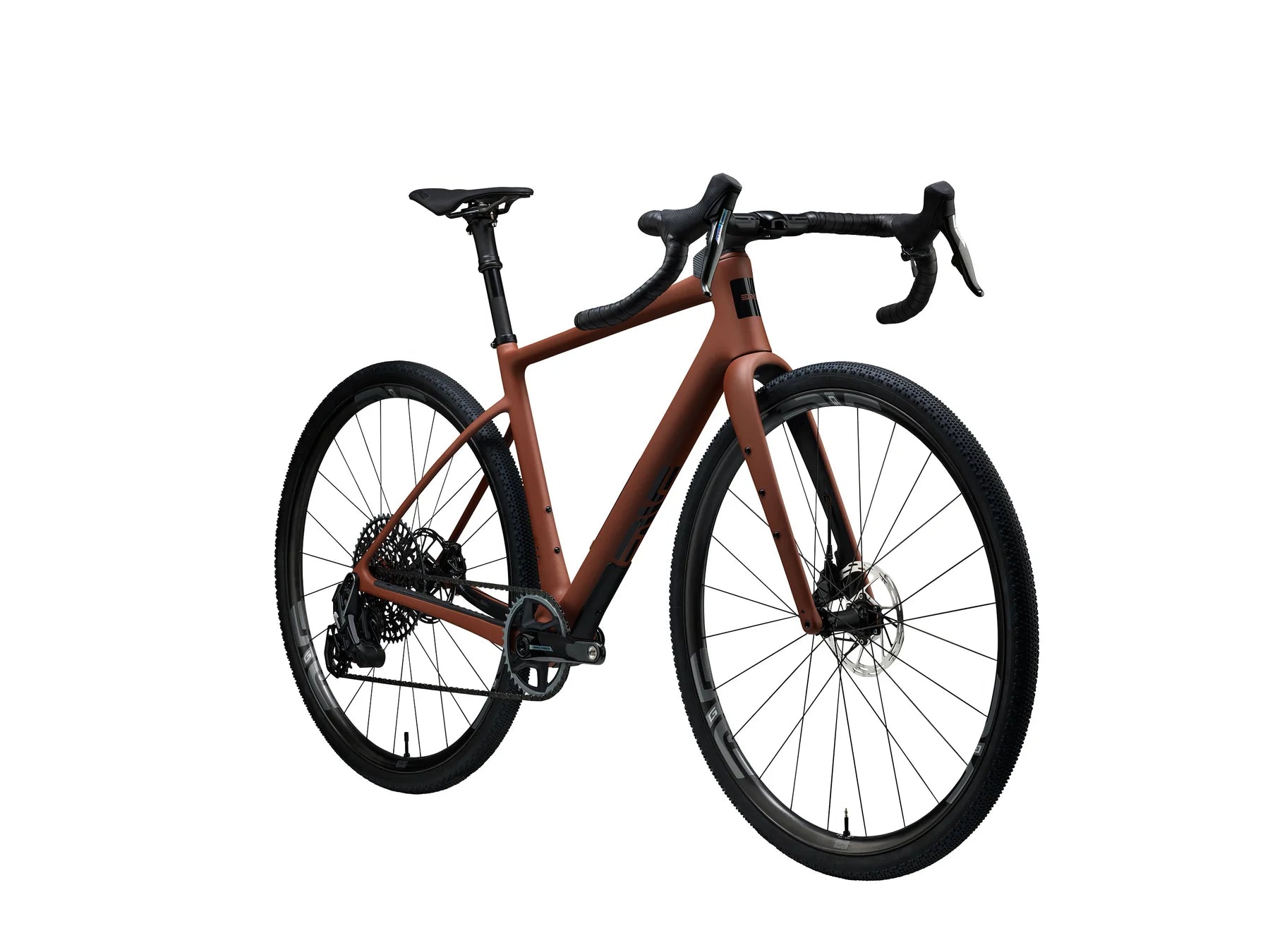

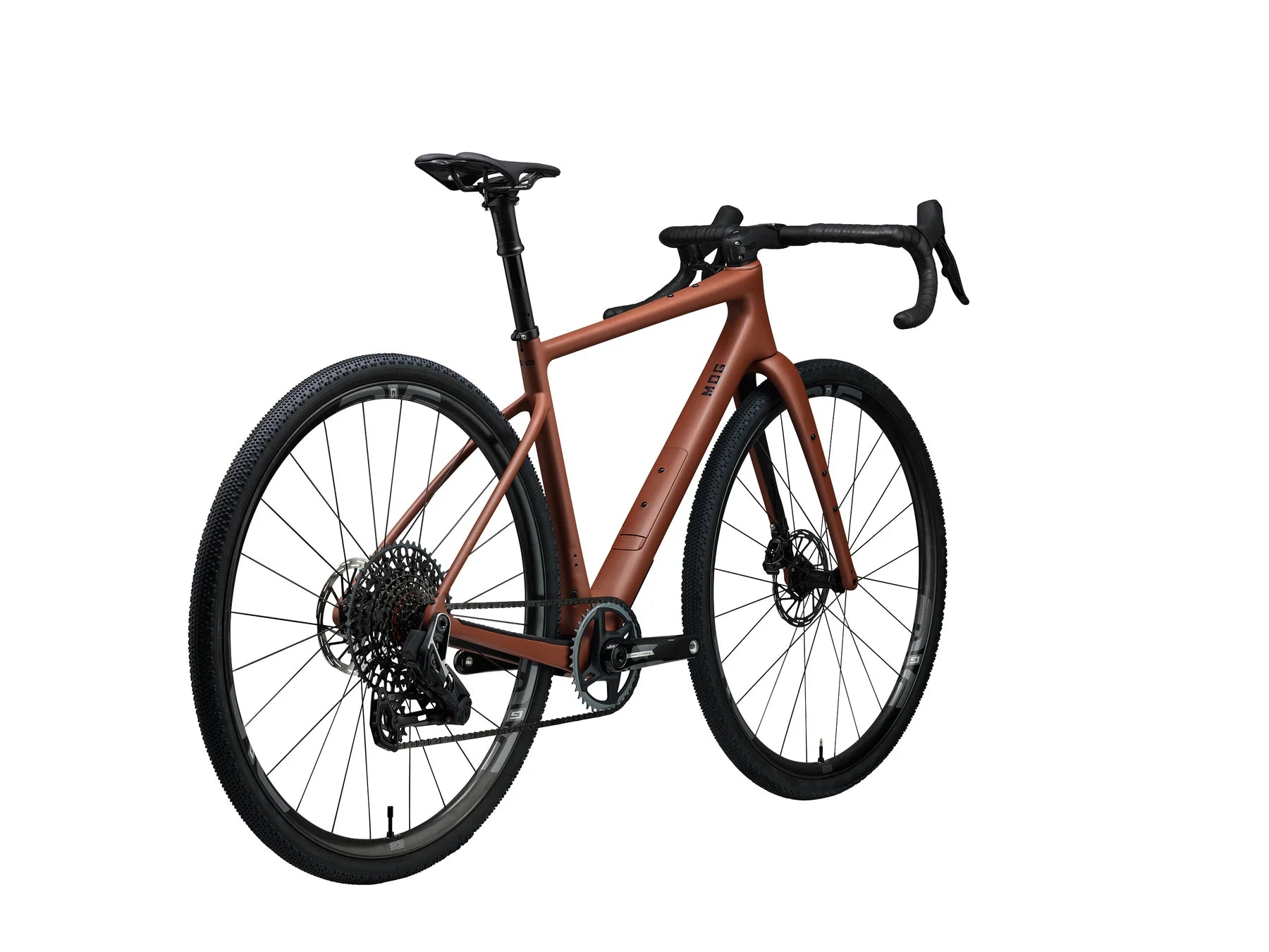

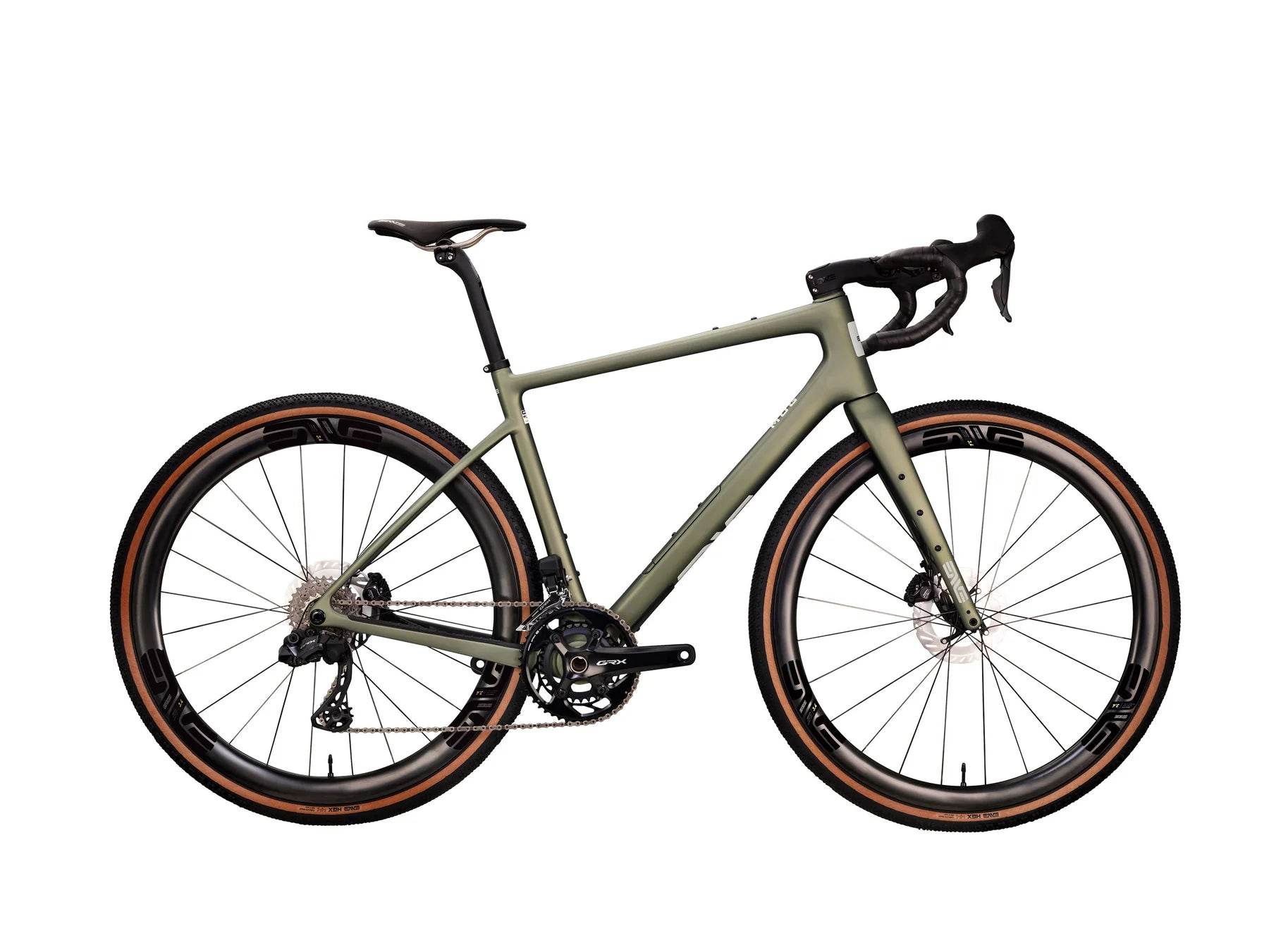

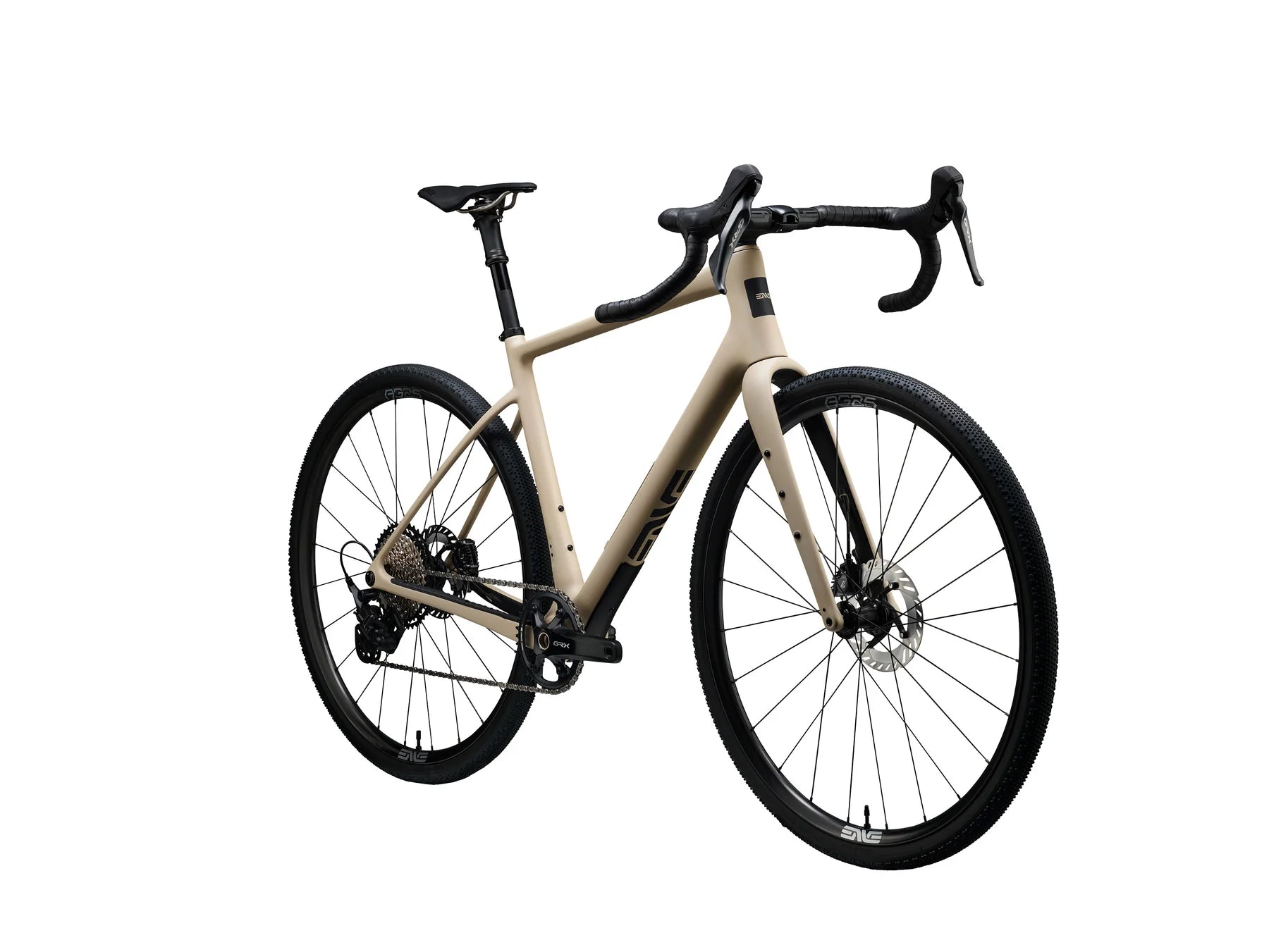

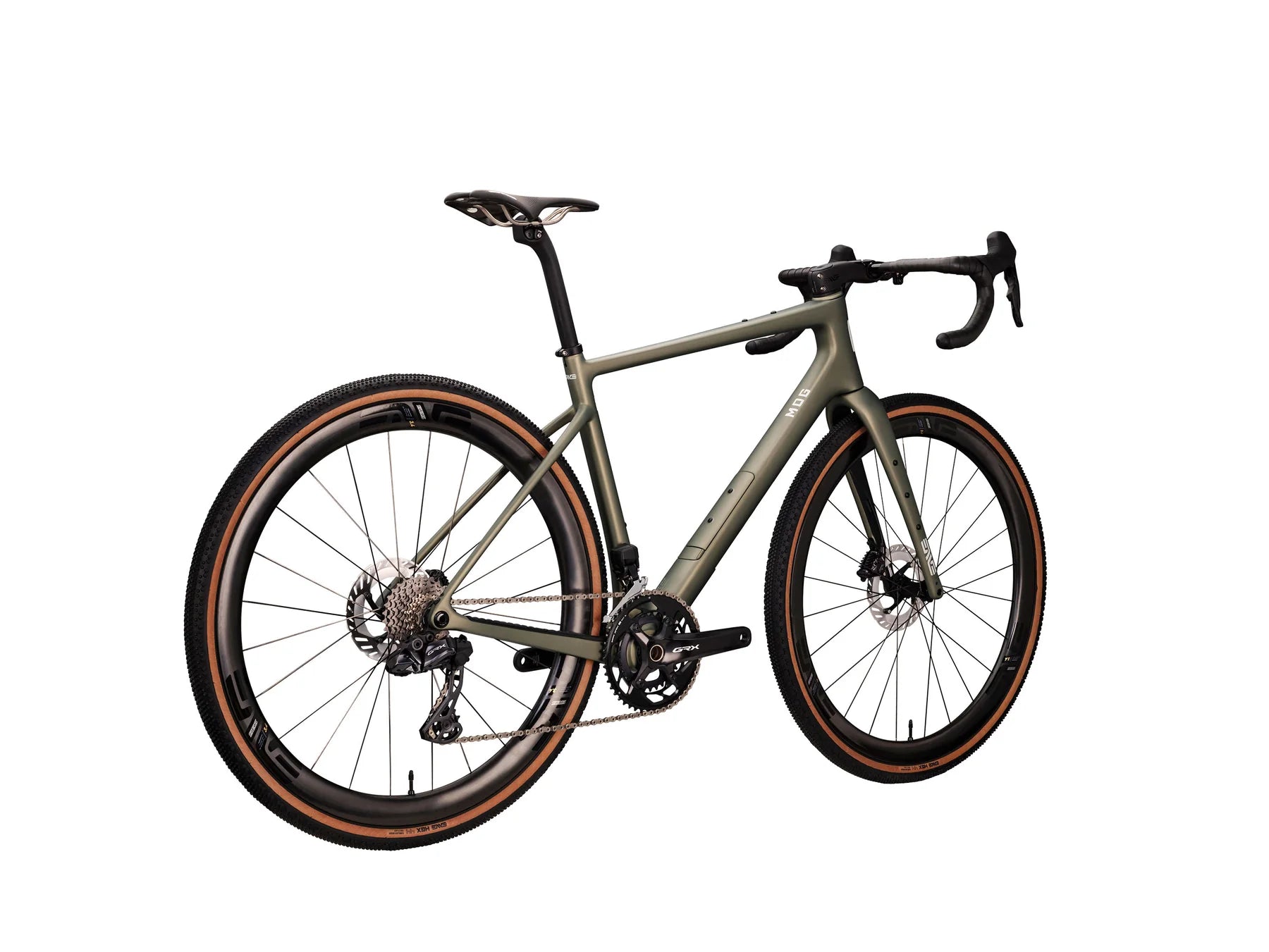

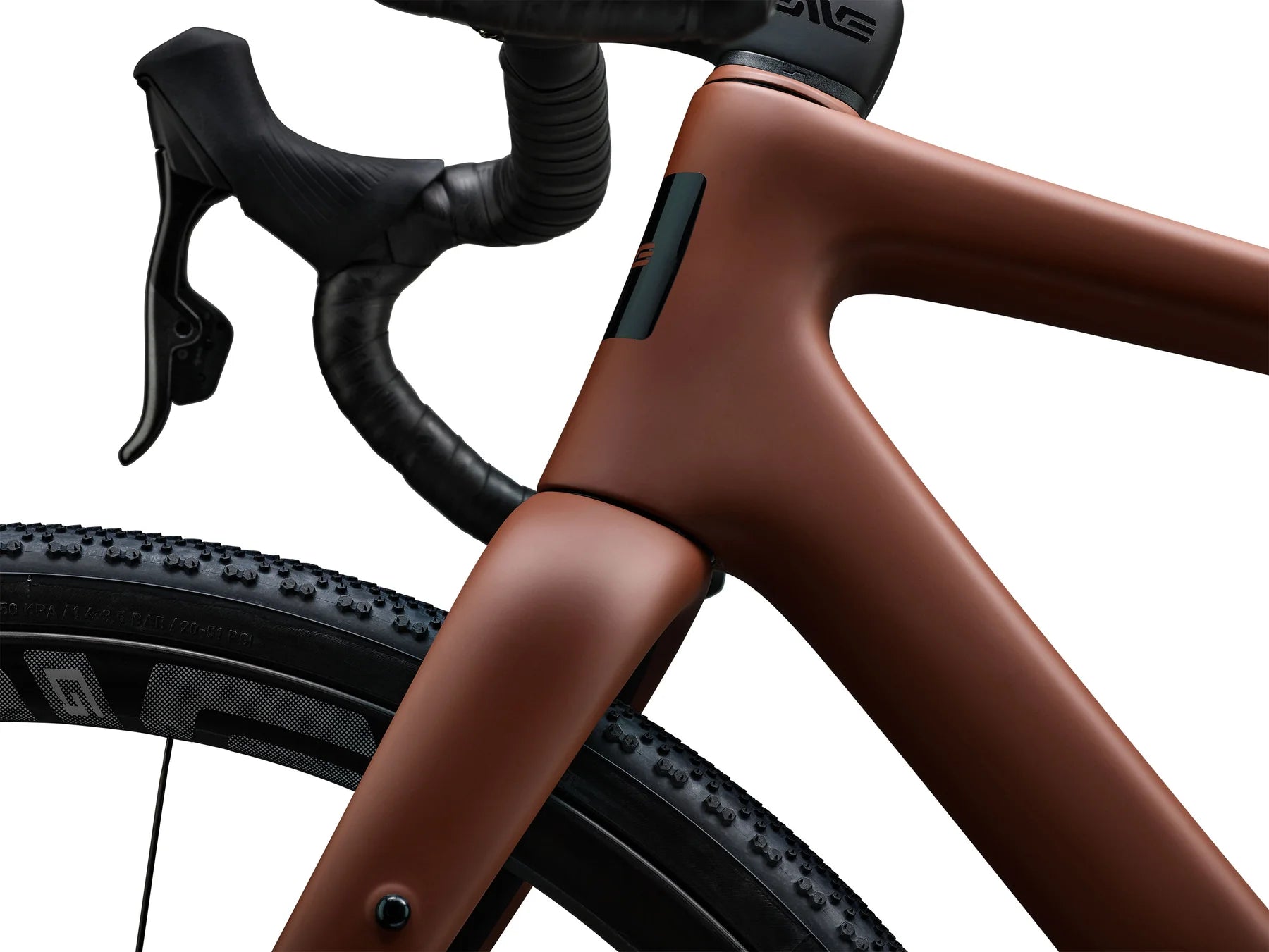

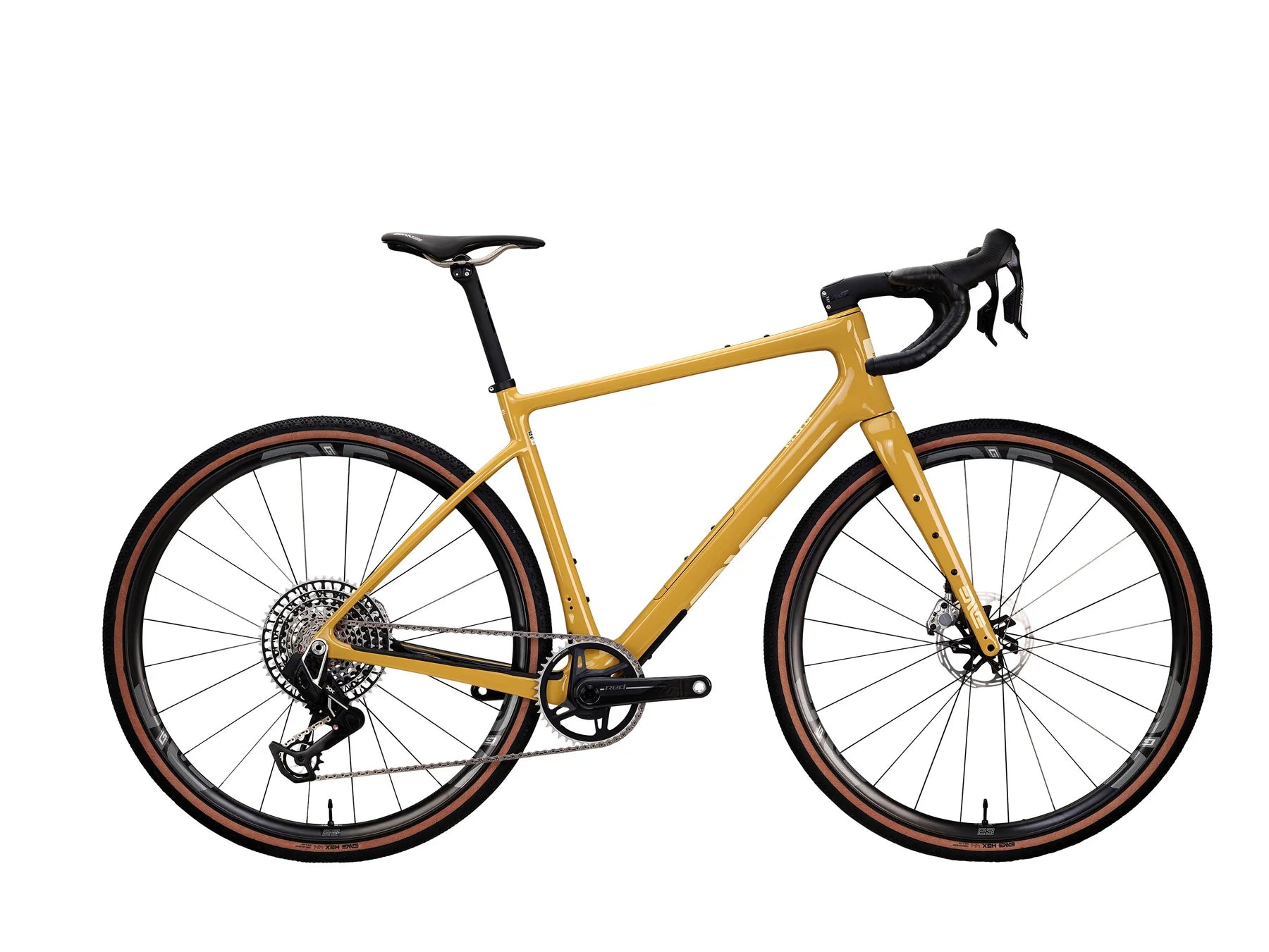

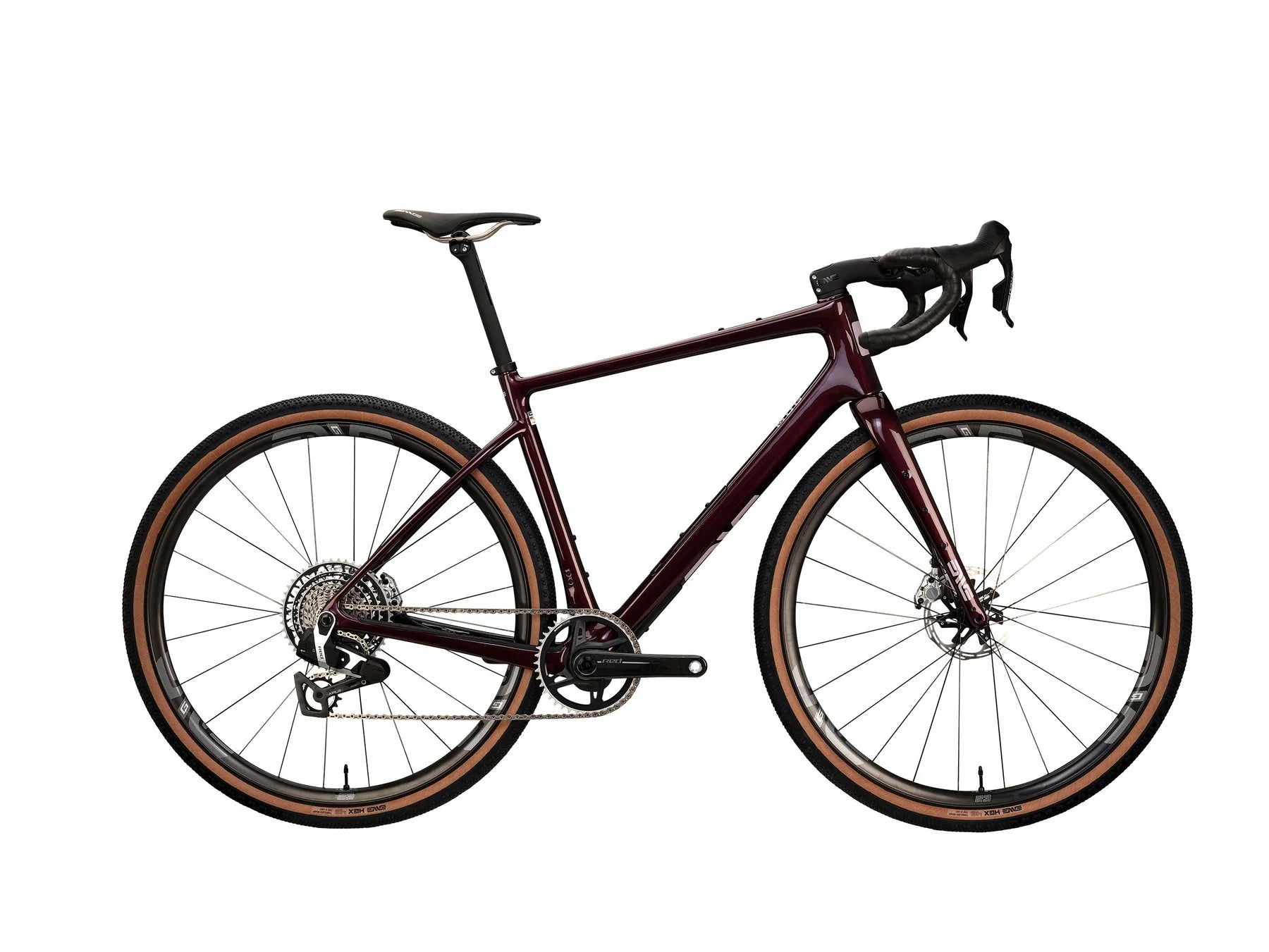

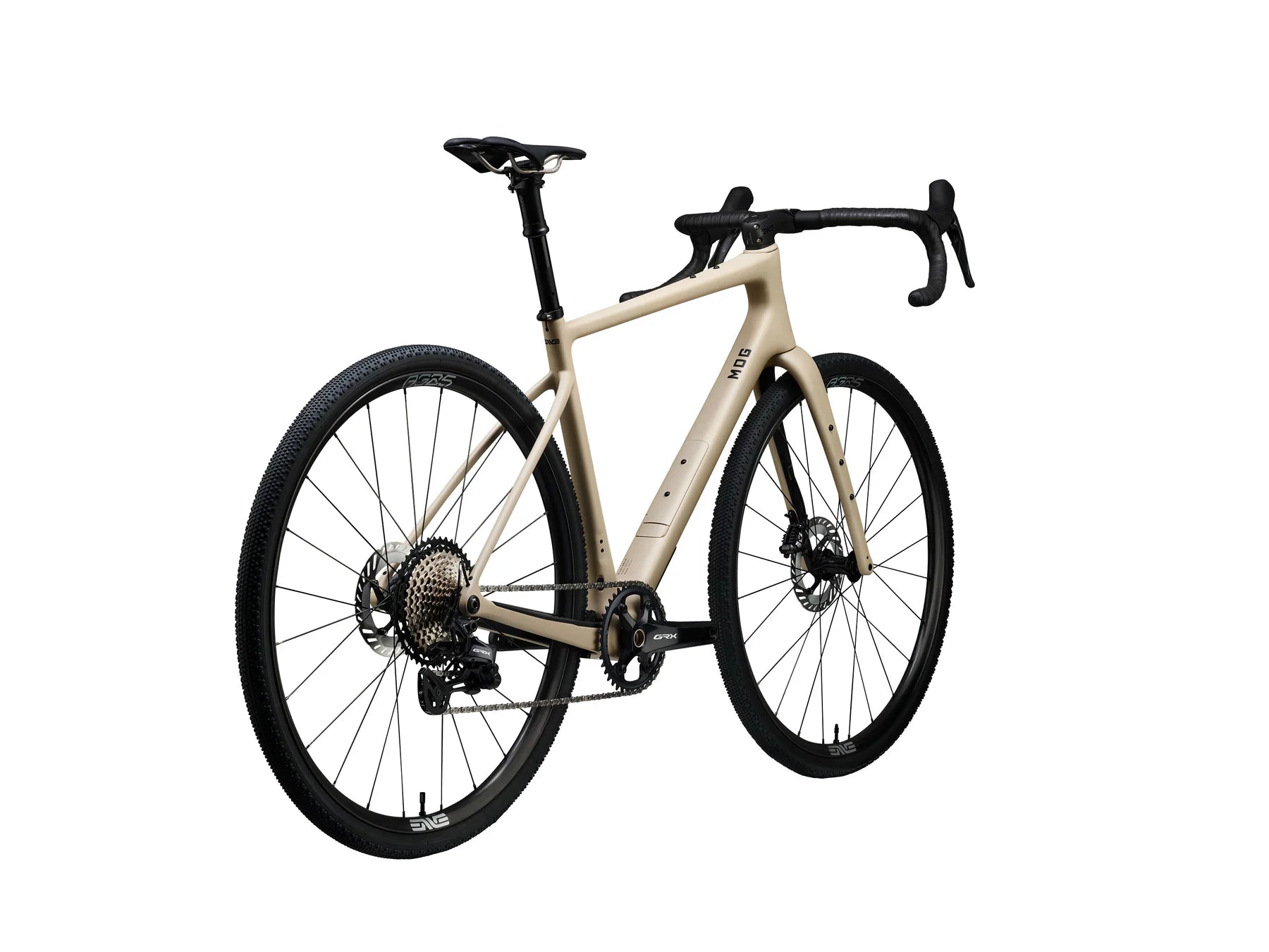

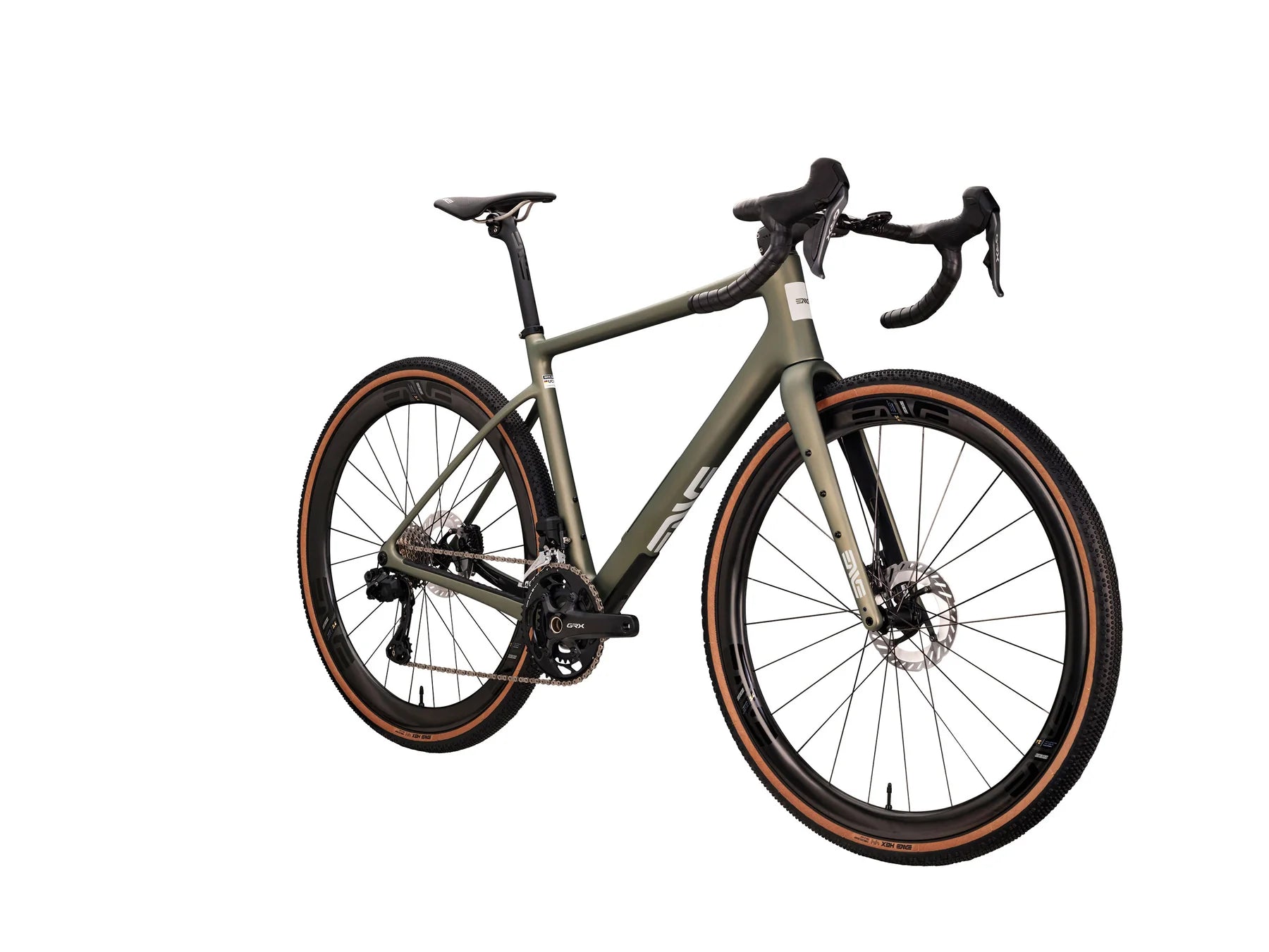

ENVE MOG (Frameset and Fork Only)
ENVE MOG (Frameset and Fork Only)
ENVE MOG (Frameset and Fork Only)
ENVE MOG (Frameset and Fork Only)
ENVE MOG (Frameset and Fork Only)

ENVE MOG (Frameset and Fork Only)

$3,750.00
DESCRIPTION

Full of capability and overflowing with versatility, the MOG delivers a world of possibilities ranging from adventure to race, and everything between. With abundant tire clearance, storage solutions, and performance geometry, the MOG has it all, and more.

The MOG is sold as a chassis-only, including the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, handlebar model, and seatpost type depending on your riding style and preferences.

BIKE SPECIFICATIONS

  • Frame Material ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
  • Fork Material ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible
  • Target Application Gravel Racing/Riding/Exploration/Adventure
  • Sizes (cm) 49, 52, 54, 56, 58, 60
  • Fork Rake 57, 55, 53
  • Fork Axle to Crown 395mm
  • Frame Size/Fork Rake 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53
  • Frame Weight 950g +/- 2% (Size 56, Painted, No Hardware)
  • Headset ENVE Integrated IS52/IS52 Internal Drop-In
  • Headset Bearing 1.5" IS52 Upper and Lower
  • Seat Post Diameter 27.2
  • BB Type T47 Inboard Bearing
  • Brake Mount Flat Mount
  • Brake Rotor Compatibility F: 160/180, R: 140/160 (Adapters Required)
  • Front Axle 12x100 (Total Length: 122, TP:1.5, TL:15)
  • Rear Axle 12x142 (Total Length: 168, TP:1.0, TL:14)
  • Minimum Tire Size 700 x 36c
  • Optimal Tire Size 700 x 40c-44c
  • Maximum Listed Tire Clearance 700 x 50c
  • Frame Routing ENVE IN-Route Internal
  • Water Bottle Capacity 3
  • Top Tube Mounts Yes
  • Fender Mount Compatible Yes
  • Wheel Size 700C (650b Not Recommended)

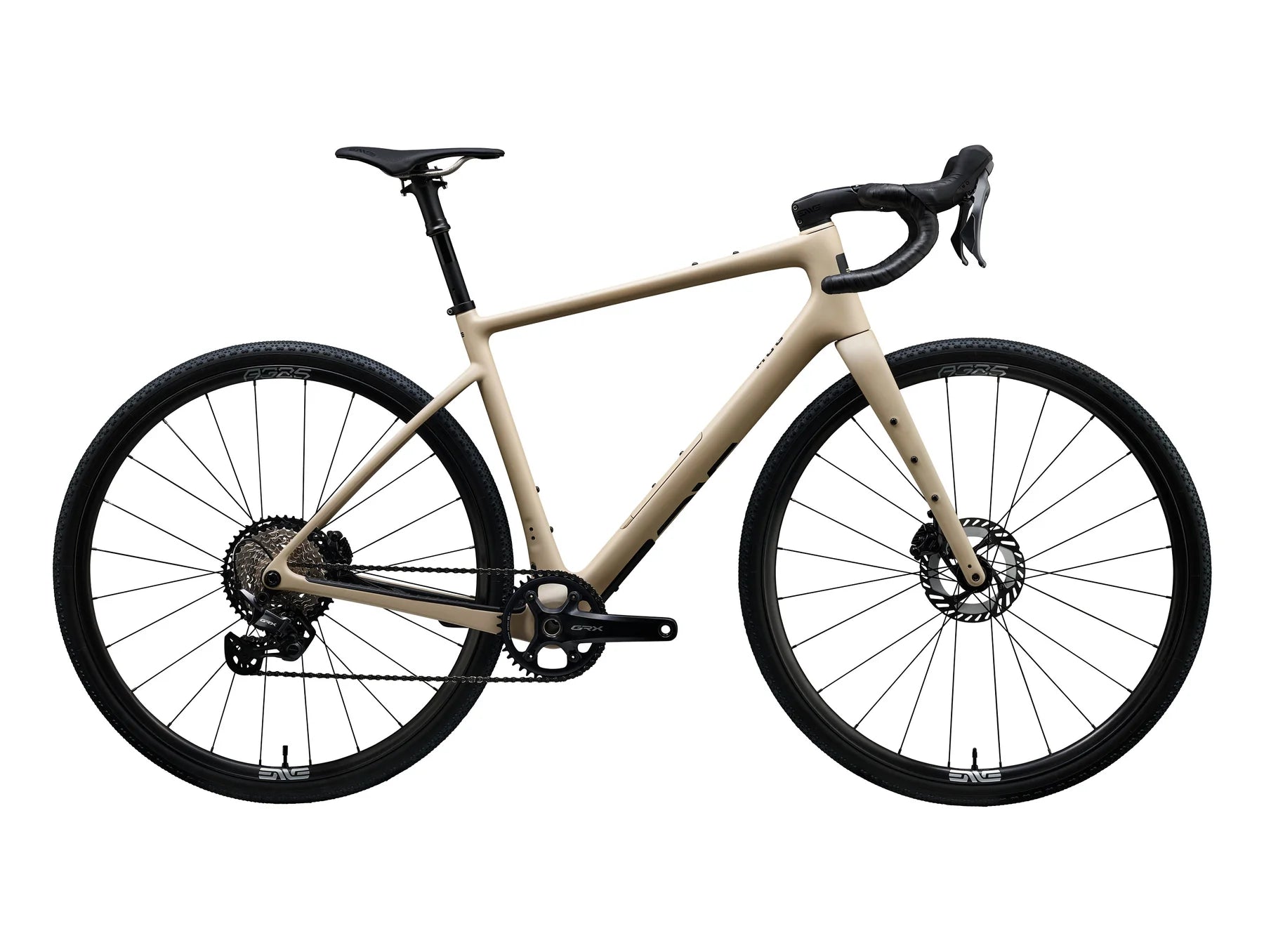

  • Color Pantone 7528C (Equivalent to Sand)

This specifications are from the information the brand releases and only apply to stock bicycles, build ups´ specifications will vary according to the components the buyer chooses.

IMPORTANT NOTES

Component Compatibility
  • Handlebars Gravel, SES AR, Compact, SES Aero Road
  • Stem ENVE Aero, IN-Route System (80, 90, 100, 110, 120, 130)
  • Seatposts ENVE Seatpost 27.2 300mm/400mm x 0mm Offset/25mm Offset - G Series Dropper Post 27.2
Drivetrain Compatibility
  • Shimano Mechanical 1x Yes
  • Shimano Mechanical 2x Yes
  • Shimano Electronic Di2 (1x/2x) Yes
  • SRAM Mechanical 1x Yes
  • SRAM Mechanical 2x No (MOG requires continuous housing for FD)
  • SRAM AXS (1x/2x) Yes
  • Campy Mechanical 1x Yes
  • Campy Mechanical 2x No (MOG requires continuous housing for FD)
  • Campy Electronic EPS Not Compatible
Couleur
Size
  • 49
  • 52
  • 54
  • 56
  • 58
  • 60
Select quantity

Expected Ship Date: Wed Feb 19

Pickup available at Pulse Endurance Sports

Usually ready in 2-4 days

View store information

ENVE MOG (Frameset and Fork Only)

Pulse Endurance Sports

Pickup available,usually ready in 2-4 days

1020 Tierra Del Rey
A2
Chula Vista CA 91910
United States

+16196565222
 More payment options

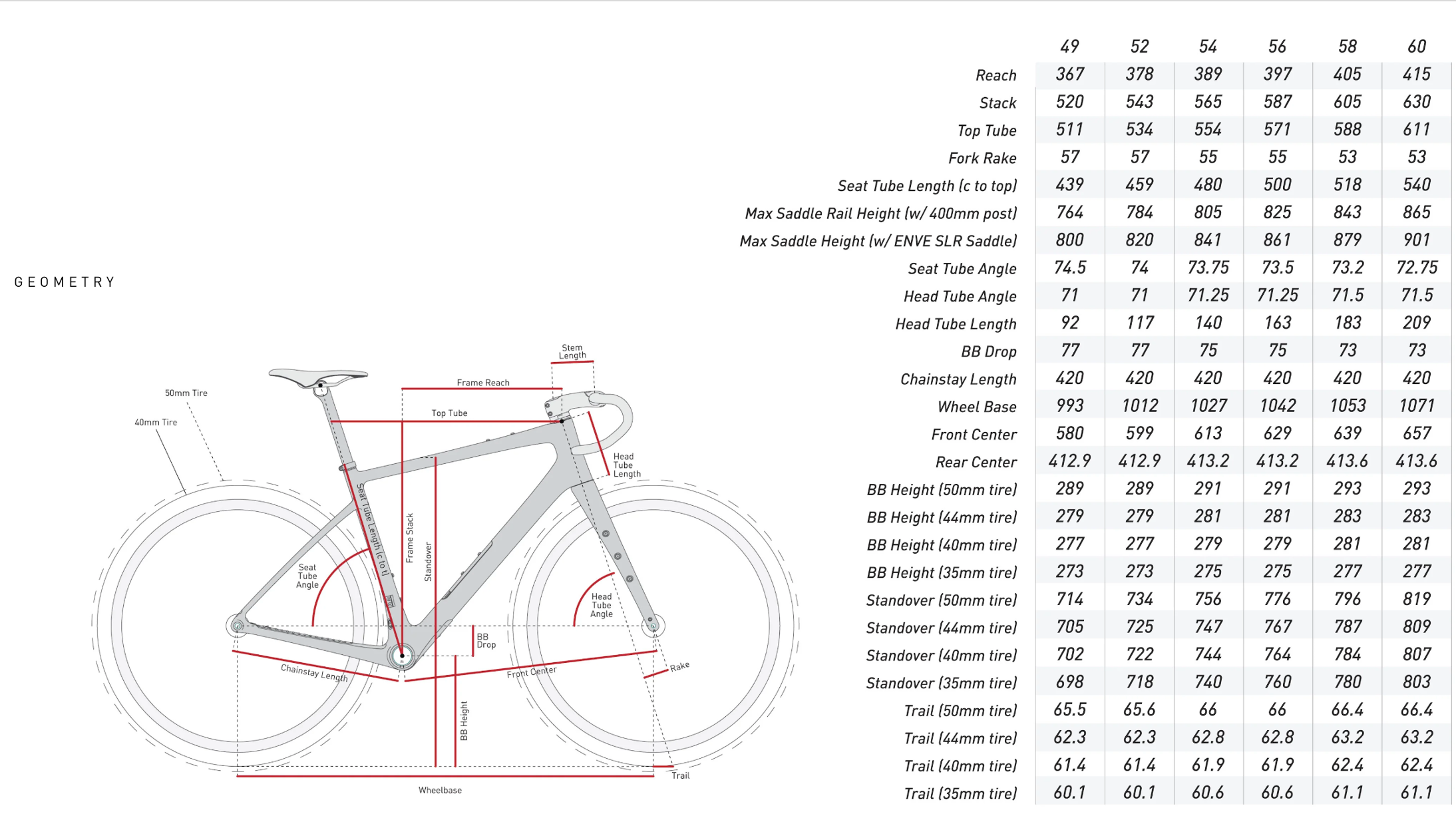

Bike Geometry
