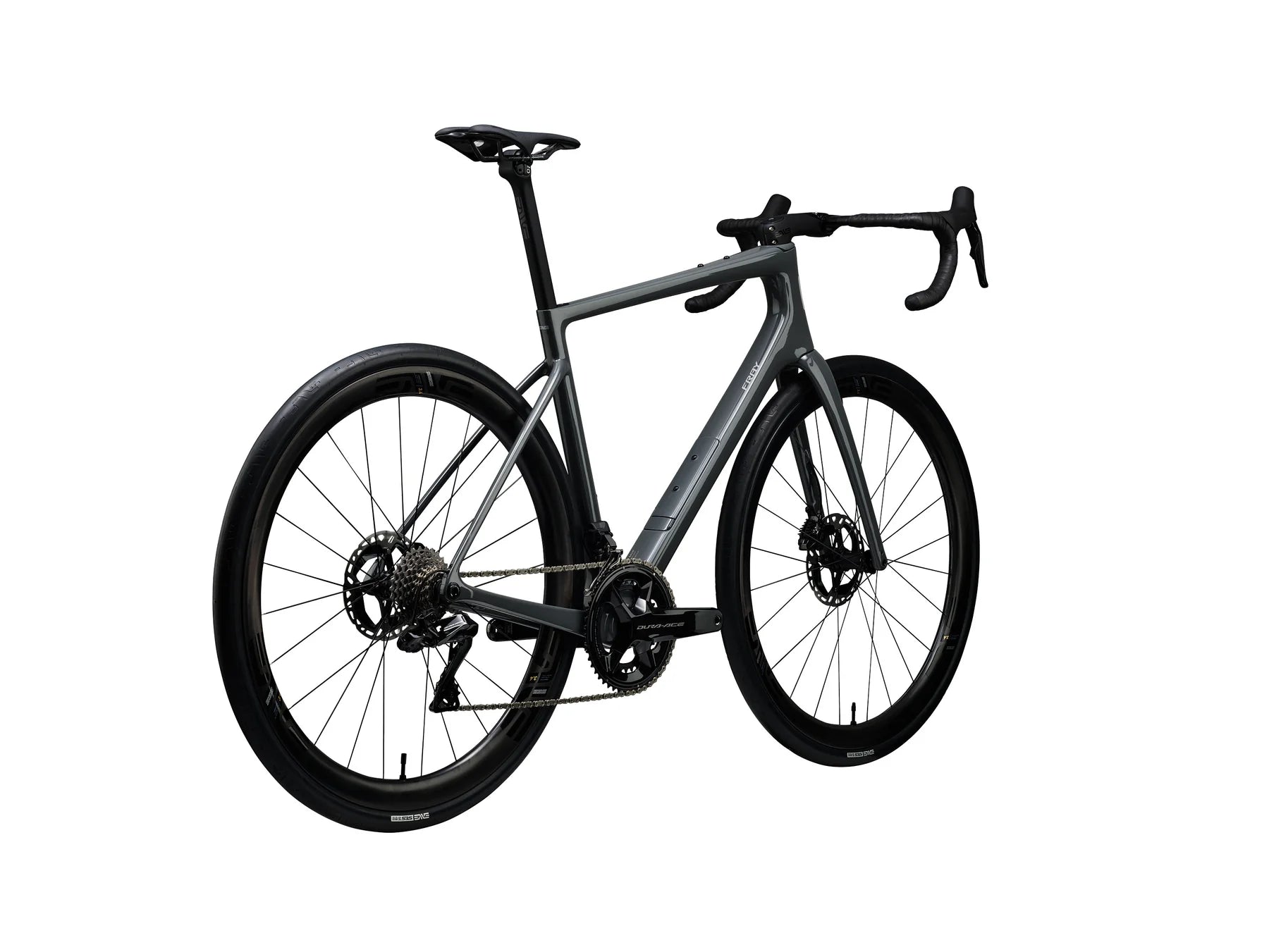

ENVE Fray Framesets (Frame and Fork Only)
ENVE Fray Framesets (Frame and Fork Only)
ENVE Fray Framesets (Frame and Fork Only)
ENVE Fray Framesets (Frame and Fork Only)
ENVE Fray Framesets (Frame and Fork Only)

ENVE Fray Framesets (Frame and Fork Only)

$4,500.00
DESCRIPTION

All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.

An ENVE Chassis is the canvas upon which you can build your dream bike. The Fray is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.

BIKE SPECIFICATIONS

  • Frame Material ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible
  • Fork Material ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible
  • Target Application All Road / Endurance / Mixed Surface / Sportif / Fondo
  • Sizes (cm) 47, 50, 52, 54, 56, 58, 60
  • Fork Rake 55, 51, 47, 43
  • Frame Size/Fork Rake 47cm/55, 50cm/55, 52cm/51, 54cm/51,56cm/47, 58cm/47, 60cm/43
  • Frame Weight 900g +/- 2% (Size 56, Painted, No Hardware)
  • Headset ENVE Integrated IS52/IS52 Internal Drop-In
  • HeadsetBearing 1.5″ IS52 Upper and Lower
  • Seat Post Diameter ENVE Aero
  • BB Type T47 Inboard Bearing
  • Brake Mount Flat Mount
  • Front Axle 12×100 (Total Length: 122, TP:1.5, TL:15)
  • Rear Axle 12×142 (Total Length: 168, TP:1.0, TL:14)
  • Minimum Tire Size 27mm
  • Optimal Tire Size 31mm - 35mm
  • Maximum Listed Tire Clearance 1x 40mm
  • Maximum Listed Tire Clearance 2x 38mm
  • In-Frame Storage Yes (2 Storage Bags included - 18.22 cubic cm each)
  • FrameRouting Internal
  • Waterbottle Capacity 3
  • Top Tube Mounts Yes
  • Fender Compatible Yes
  • Wheel Size 700c

This specifications are from the information the brand releases and only apply to stock bicycles, build ups´ specifications will vary according to the components the buyer chooses.

IMPORTANT NOTES

COMPONENT COMPATIBILITY
  • Handlebars ENVE IN-Route
  • Stem ENVE IN-Route
  • Seat Posts Aero 275mm x 0 OffsetAero 350mm x 0 OffsetAero 350mm x 20 Offset
DRIVETRAIN COMPATIBILITY
  • Shimano Mechanical 1x Yes
  • Shimano Mechanical 2x Yes
  • Shimano Electronic Di2 (1x/2x) Yes
  • SRAM Mechanical 1x Yes
  • SRAM Mechanical 2x No (Fray requires continuous housing for FD)
  • SRAM AXS (1x/2x) Yes
  • Campy Mechanical 1x Yes
  • Campy Mechanical 2x No (Fray requires continuous housing for FD)
  • Campy Electronic EPS Not Compatible
Couleur
Size
  • 47
  • 50
  • 52
  • 54
  • 56
  • 58
  • 60
Select quantity

Expected Ship Date: Wed Feb 19

Pickup available at Pulse Endurance Sports

Usually ready in 2-4 days

View store information

ENVE Fray Framesets (Frame and Fork Only)

Pulse Endurance Sports

Pickup available,usually ready in 2-4 days

1020 Tierra Del Rey
A2
Chula Vista CA 91910
United States

+16196565222
 More payment options

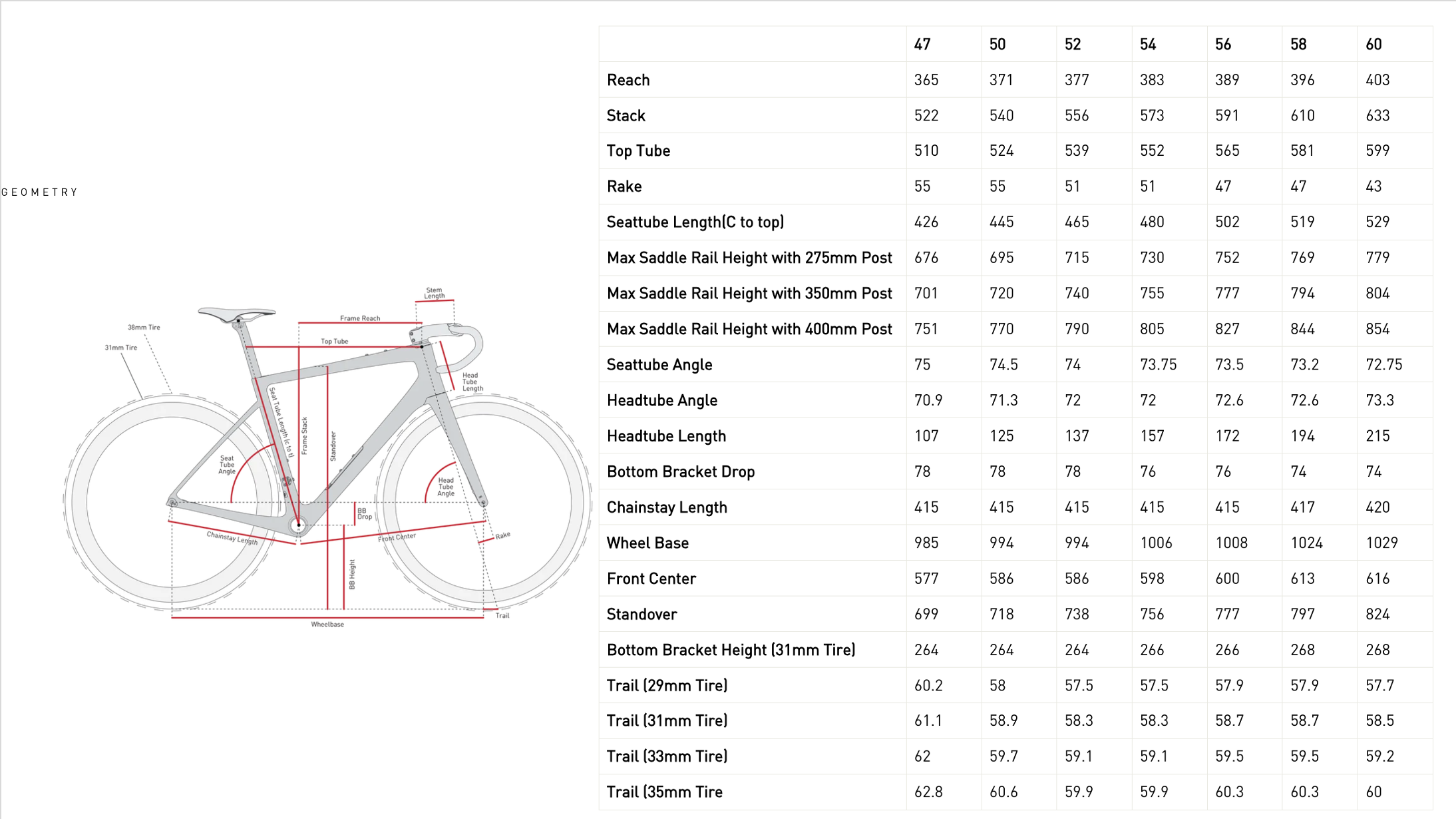

Bike Geometry
