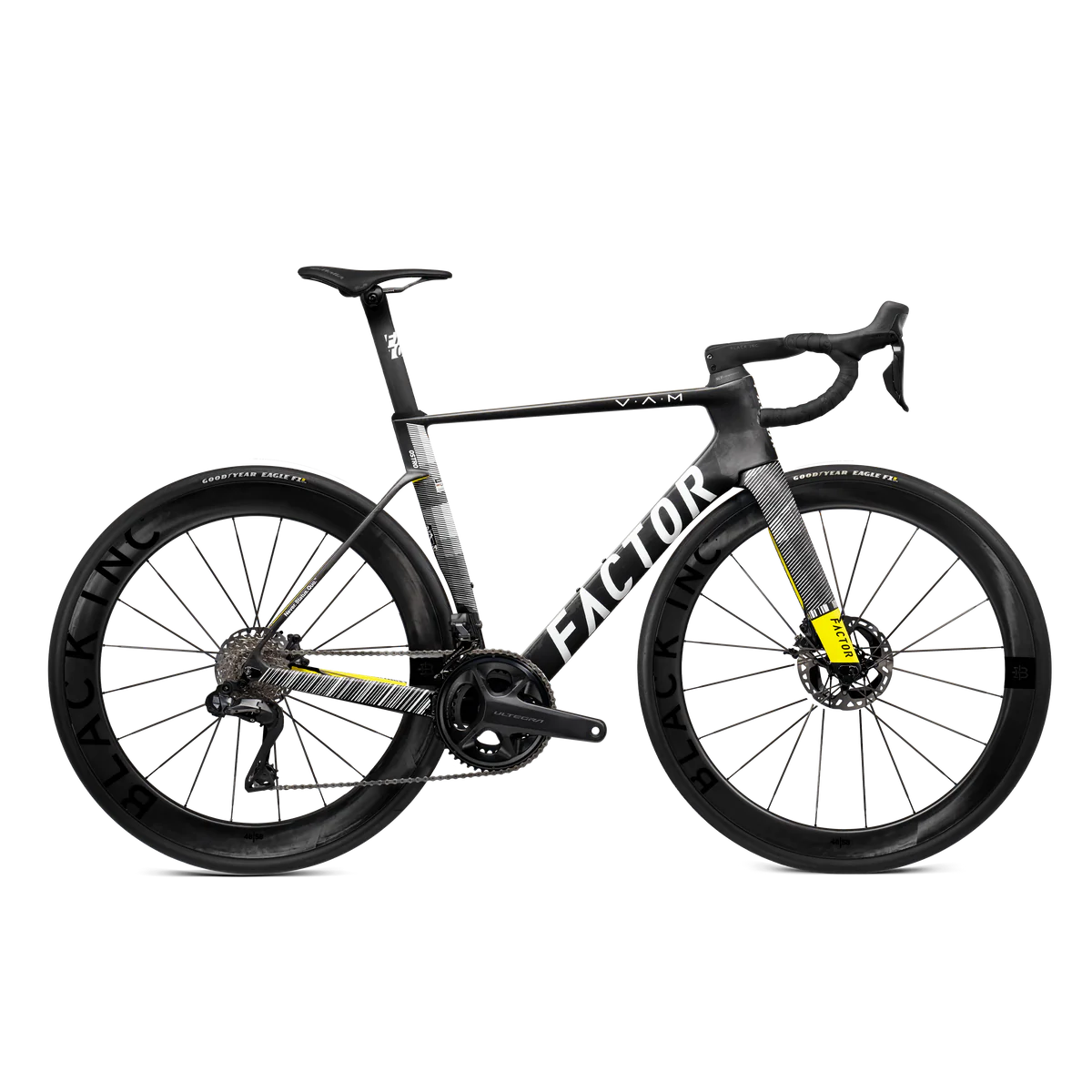

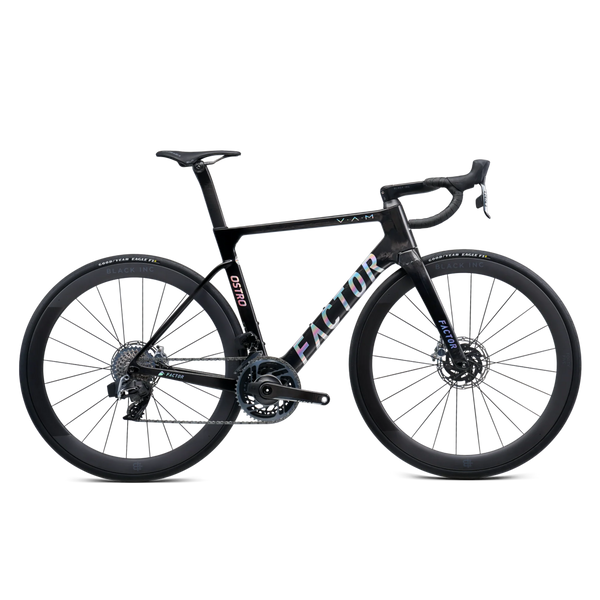

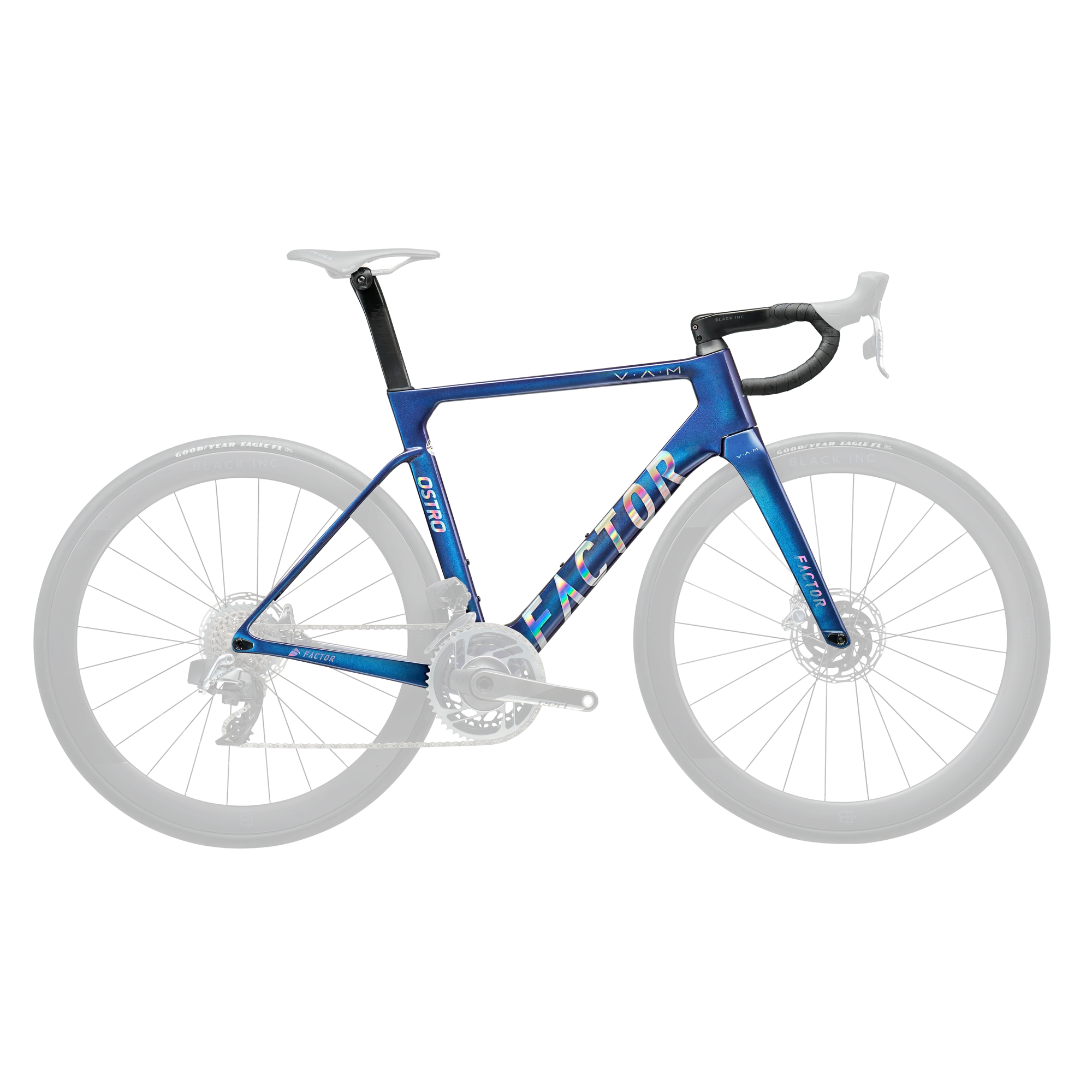

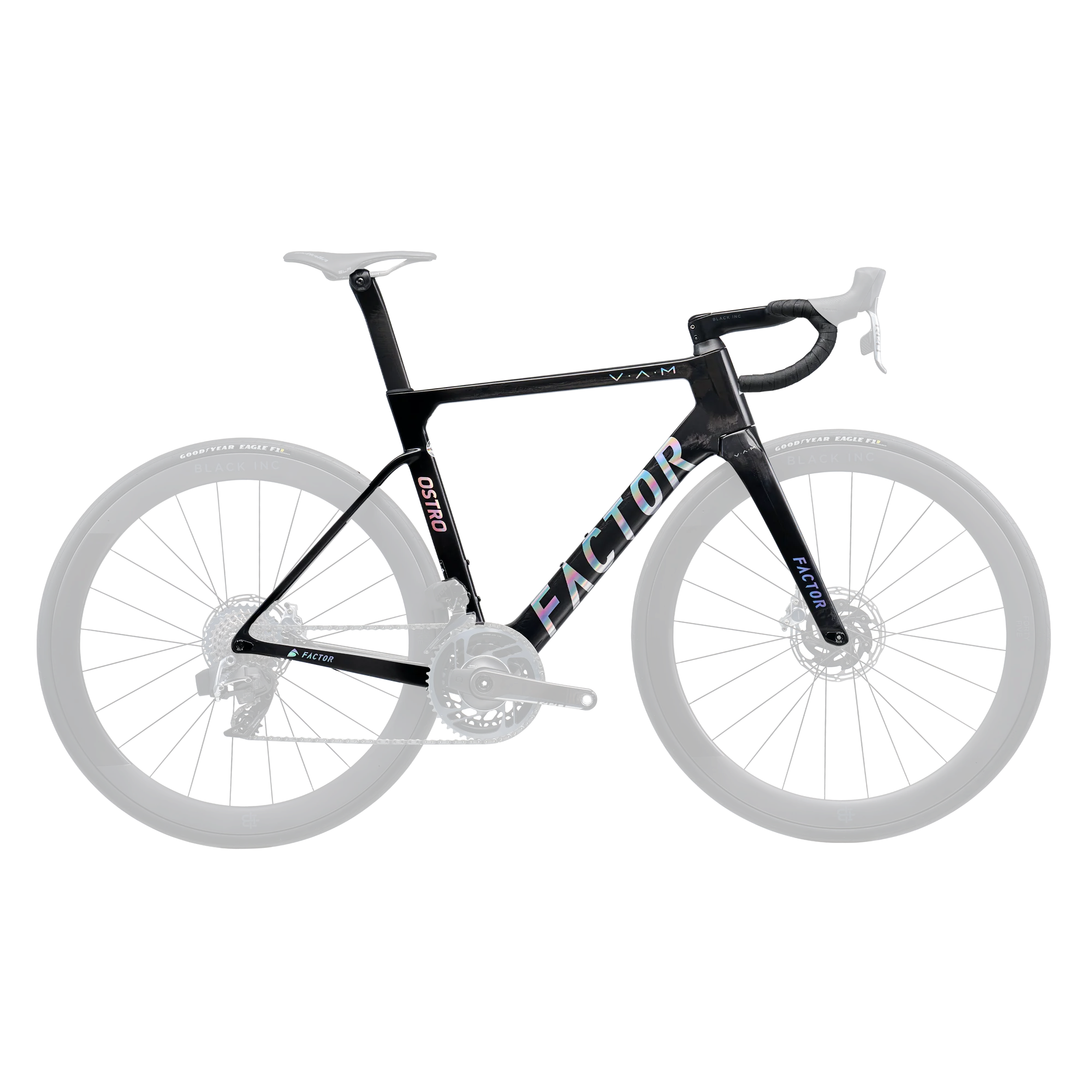

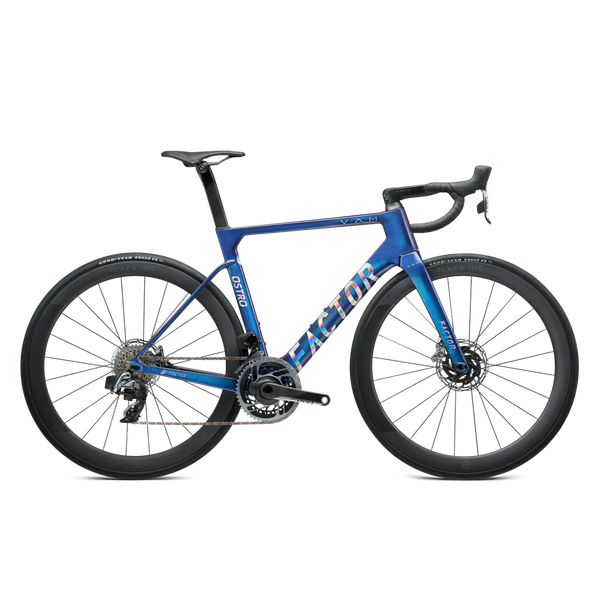

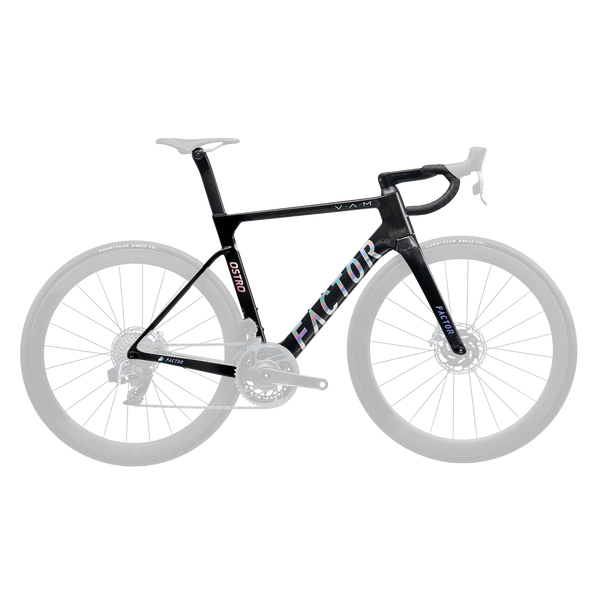

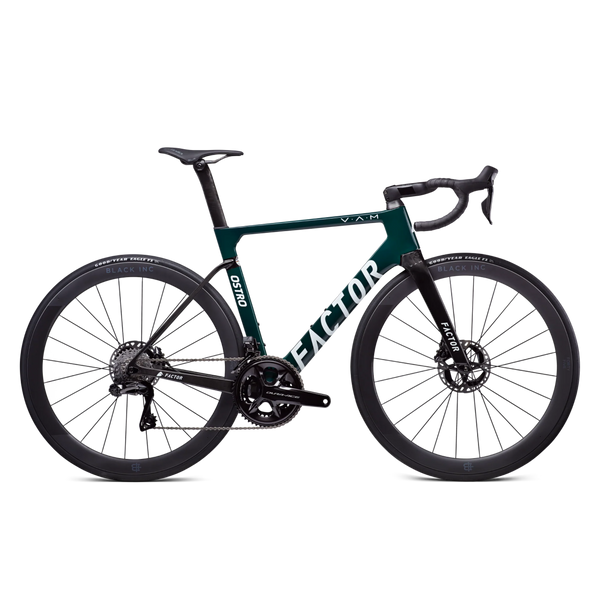

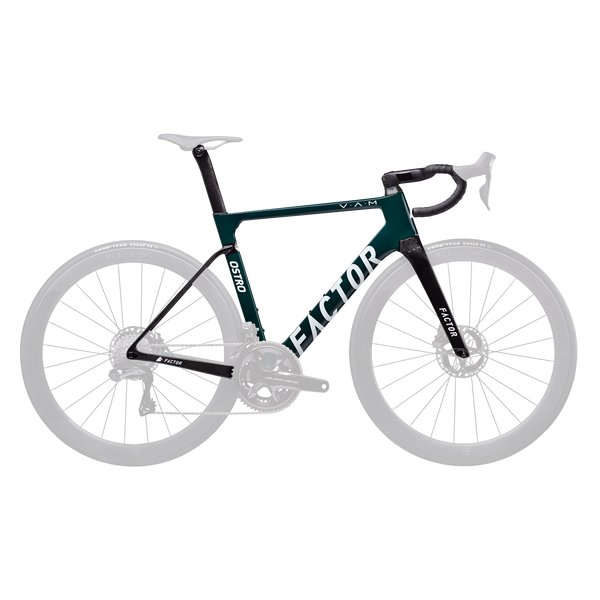

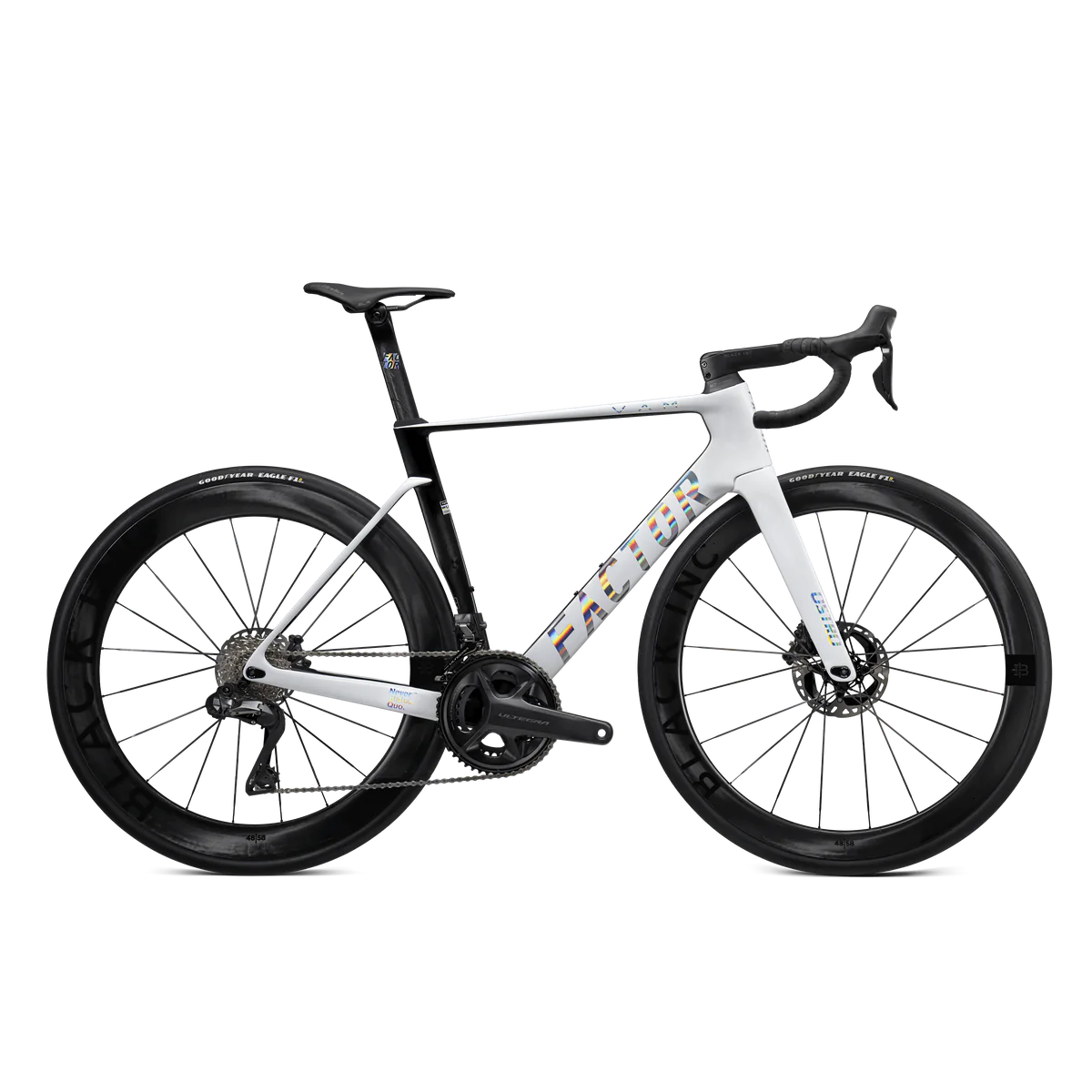

The OSTRO VAM is an aero disc-brake frame which weighs just 830g (painted, size 54, Chrome design). We have used the very best materials to reach such a low weight, laying up the ultimate carbon materials perfectly to ensure low weight, responsive ride, and durability. It can easily be built up to below the UCI 6.8kg weight limit, which is unique among aero frames. That means that the aero advantages come without the usual weight penalty. Few rides or race routes are exclusively mountainous or flat roads so, naturally, you want it all: speed and lightweight. The OSTRO is the everything bike, making you fast whatever the terrain.

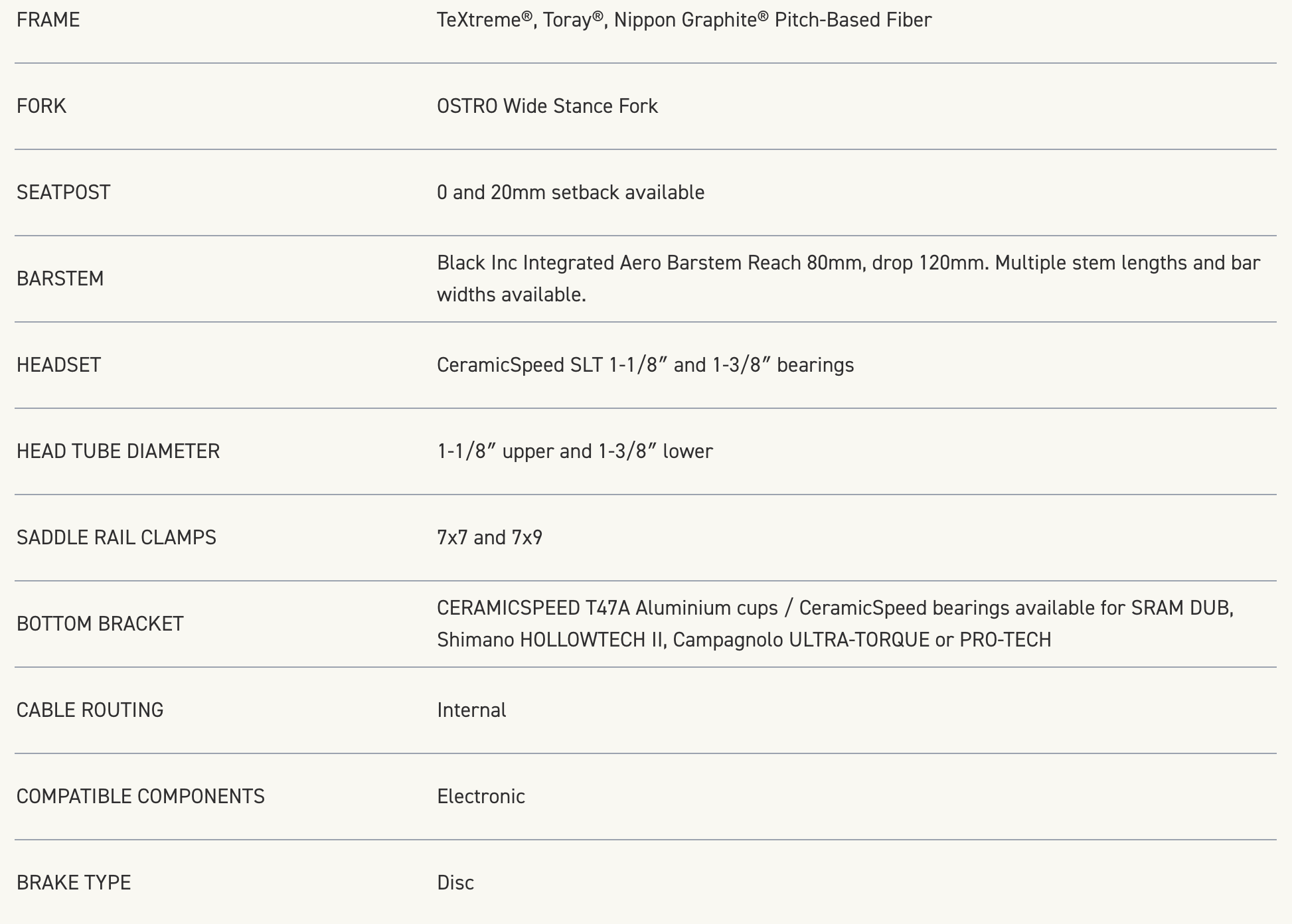

Barstem Black Inc Integrated Aero Barstem Reach 80mm, drop 120mm. Multiple stem lengths and bar widths available.
Cockpit
Headset CeramicSpeed SLT 1-1/8″ and 1-3/8″ bearings
Head Tube Diameter1-1/8″ upper and 1-3/8″ lower
Saddle Rail Clamps7x7 and 7x9
Bottom Bracket CeramicSpeed T47A Aluminium cups / CeramicSpeed bearings available for DUB, 24mm, or Ultra-Torque
Cable Routing Internal
Compatible Components Electronic
Brake type Disc
Max Rotor Size 160mm front & rear
Max Chainring 54-tooth
Front Axle12 x 100mm thru-axle
Rear Axle12 x 142mm thru-axle
Wheelset
Black Inc 48|58 Wheel Size700c
Max Tire Clearance32mm Measured
Weight 900g
Manufacturer Warranty Limited Lifetime Warranty
Ultegra Groupset Specs
Groupset Shimano Ultegra Di2 R8170 Series
Speed 2x12-speed
Crank 52/36TCassette11-30T
Rotors 160/140mm
Force Groupset Specs
Groupset SRAM Force AXS w/ Power Meter
Speed 2x12-speed
Crank 48/35T
Cassette 10-33T
Rotors 160mm
Dura Ace Groupset Specs
Groupset Shimano Dura Ace Di2 R9270 Series
Speed 2x12-speed
Crank 52/36TCassette11-30T
Rotors 160/140mm
RED Groupset Specs
Groupset SRAM RED AXS w/ Power Meter
Speed 2x12-speed
Crank 48/35T
Cassette 10-33T
Rotors 160mm
This specifications are from the information the brand releases and only apply to stock bicycles, build ups´ specifications will vary according to the components the buyer chooses.
IMPORTANT NOTES
Please select which size and color you are interested in and we will contact you with frame availability, build, pickup and delivery options. Estimated delivery times start at 2 weeks, but may take longer depending on availability.
