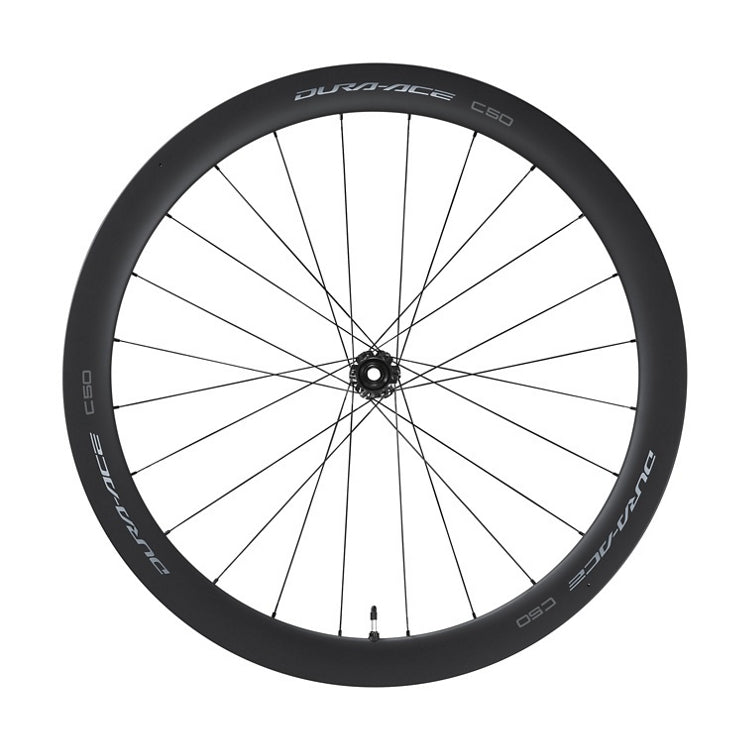

Model No: WH-R9270-C50-TL-R and WH-R9270-C50-TL-F

Series: DURA-ACE

Model name: WH-R9270-C50-TL

Specification: R and F

Color: 1 Hub shell Series color

Front/Rear: Rear

Brake type: CENTER LOCK disc brake

Rear speeds: 12

O.L.D. (mm): Front 100, Rear 142

Wheel size: 700C

Neumático

• Type Tubular
• Recommended size 25-622 - 32-622

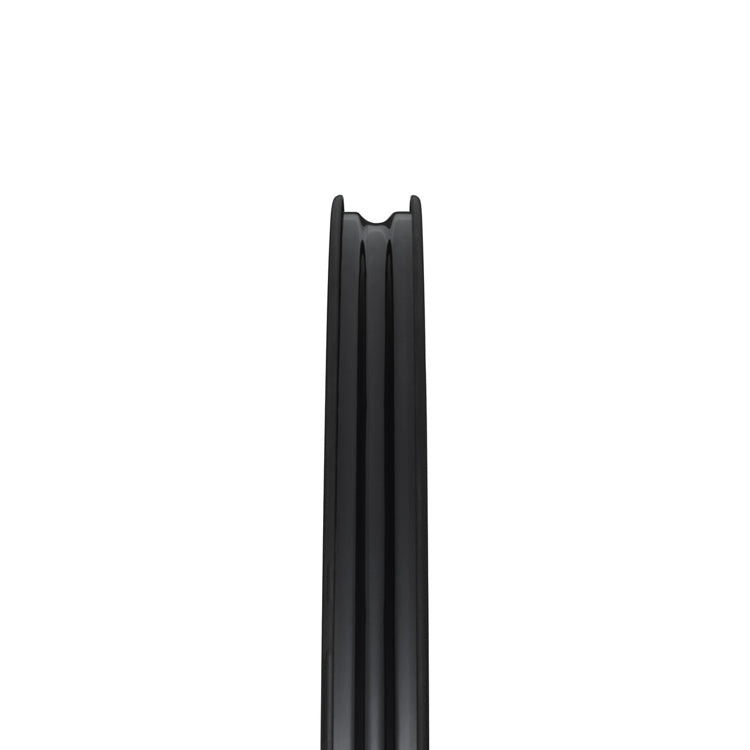

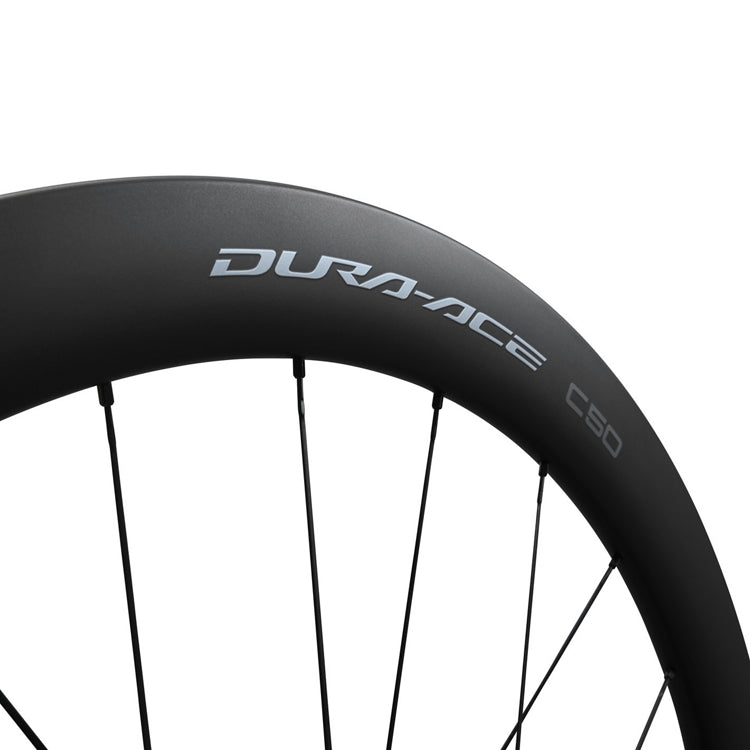

Rims

• Height (mm) 50
• Internal width(mm) 21
• External width (mm) 28
• Requires rim tape ✔

Radios

• Number 24
• Straight pull ✔
• Bladed ✔
• Butted ✔
• Diameter (mm) 2.0-1.5-2.0

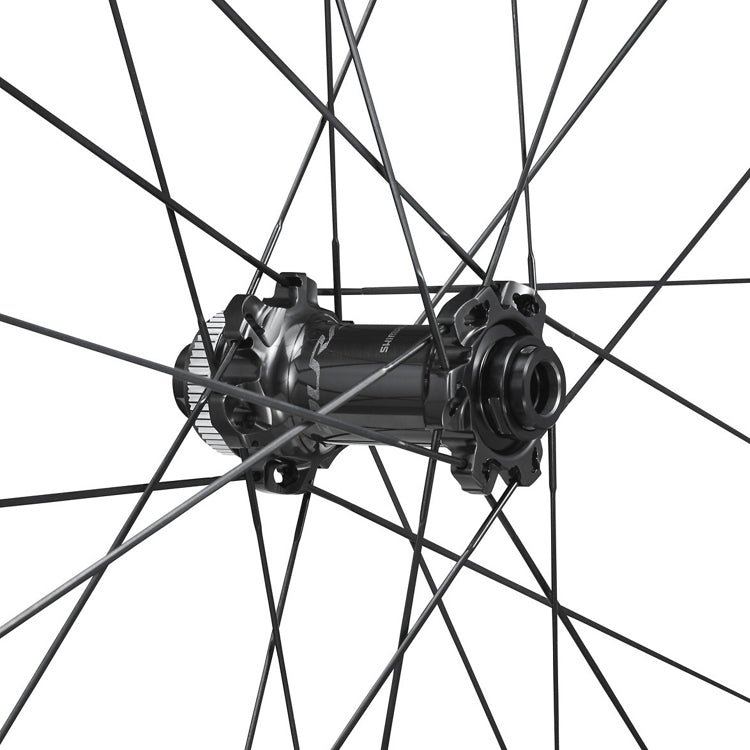

Axle fixing method 12 mm E-THRU

Spline type HG spline L2 (ROAD 12-speed dedicated) ✔

Engagement type: Direct engagement

Disc mount

• CENTER LOCK ✔
• 140 mm disc brake rotor compatible ✔

OPTBAL (2:1) ✔

D2 rim ✔

Seal

• Hub Contact
• FREEHUB body Contact

Rim Finish: Painted

Average weight: 787g

Compatible spoke protector: CP-WR92A

Reflector

• JIS/CPSC CATEYE RR-550-WUW SW
• AS CATEYE RR-550-WUA SW
• DIN CATEYE RR-317-WUA SW

Color Series color
